GX24064

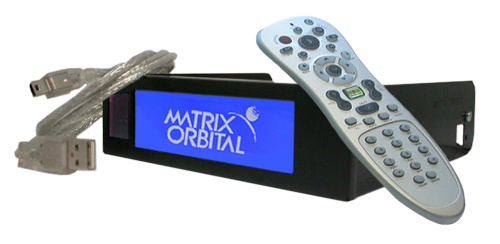

Inverse blue display with black aluminum bay insert. MCE remote and 3ft A to B Mini USB included.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Appearance:
| Module Size | 138.20 mm(L)×38.20 mm(W)×27.50 mm(T) |
| Active Area | 93.57 mm(L)×24.93 mm(W) |
| Background Color | Blue |
| Text Color | White |
Interface:
| USB | 12582912 |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 108 mA |
| Backlight Current | 203 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| GX24064-TC-BBI | 240x64 LCD display with black aluminum bay insert. USB interface. | $99 | |
| GX24064-WB-BBI | USB Graphic LCD with mounting bracket with IR sensor window, 3ft mini USB cable, no remote control | $100 | |
| GX24064-TCI-BBI | USB Graphic LCD with mounting bracket with IR sensor window, 3ft mini USB cable, no remote control | $100 | |
| GX24064-FGW-BBI | 240x64 LCD display with black aluminum bay insert. USB interface. | $100 | |
| GX24064-TC-BBI-MCE | 240x64 LCD display with black aluminum bay insert. USB interface. | $114 | |
| GX24064-WB-BBI-MCE | USB Graphic LCD with mounting bracket with IR sensor window, 3ft mini USB cable, remote control | $115 | |
| GX24064-TCI-BBI-MCE | USB Graphic LCD with mounting bracket with IR sensor window, 3ft mini USB cable, remote control | $115 | |
| GX24064-FGW-BBI-MCE | 240x64 LCD display with black aluminum bay insert. USB interface. | $115 |
