MOS-AL162F-YX3SE

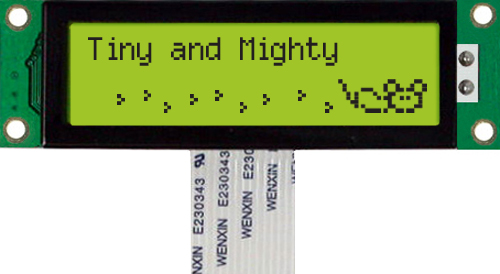

This 16 character by 2 line LCD display comes with an easy to use RS232 communication interface and 1 General Purpose Outputs.
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | N/A |
| One Wire | N/A |
| GPO | 1 |
| LCD Type | Alpha |
| Character Set | English / European |
| Model | F |
Appearance:
| Module Size | 69.00 mm(L)×21.50 mm(W)×23.65 mm(T) |
| Character Size | 2.56 mm(L)×4.90 mm(W) |
| Active Area | 47.56 mm(L)×11.00 mm(W) |
| Background Color | Yellow/Green |
| Text Color | Black |
| Format | 16 x 2 |
Interface:
| RS232 | 9600 to bps |
| RS232 TTL | 9600 to bps |
| Buffer | 128 Bytes |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Max Humidity | 90% |
| Supply Current | 33 mA |
| Backlight Current | 51 mA |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| MOS-AL162F-YX3SE | Base Product | $44 |
