BLK204-7T-1U-BK-USB-TCI Display Module

BLK204-7T-1U-BK-USB-TCI

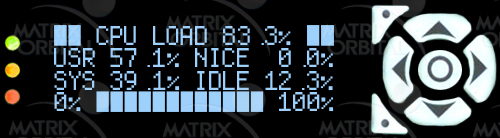

This part number includes all that you need for a PC Bay Insert. The display is our LK204-7T-1U-USB-TCI which is a 20 by 6 USB character LCD with a 7 key tactile keypad and 3 status indicating LEDs. This unit fits into a 1U opening. It also comes with the B19264-BK (Black) mounting bracket and 3ft A to B Mini USB.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad7
One WireN/A
GPO6
Advanced GPON/A

Appearance:


Module Size140.20 mm(L)×38.00 mm(W)×29.00 mm(T)
Character Size5.20 mm(L)×3.90 mm(W)
Active Area77.00 mm(L)×23.60 mm(W)
Background ColorBlack
Text ColorTri-Color
Format20 x 4

Interface:


Buffer128 Bytes
USB19200 33600 56700

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current90 mA
Backlight Current140 mA

Part No. Description Price
BLK204-7T-1U-BK-USB-TCI Base Product $103
BLK204-7T-1U-BK-USB-TCI-E Extended Temperature option. $113
