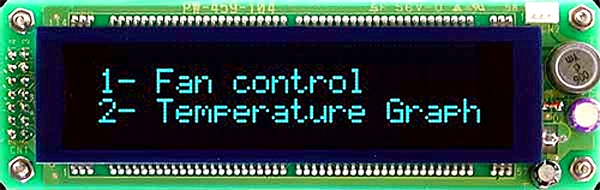

VK202-24-USB
The new 20 characters by 2 lines vacuum florescent display USB units come with the capability to connect up to a 6 by 4 matrix style keypad. The VK202-24-USB is a robust and versatile product that is easily connected with one cable for power and communication. These units have found popularity in HTPC cases.
Technical Manual
Cables
VFD Filters
Keypad Selection Guide
Features:
| Keypad | 24 |
| One Wire | 4 |
| GPO | 3 |
| Advanced GPO | 3 |
Appearance:
| Module Size | 116.00 mm (L)×37.00 mm(W)×22.00 mm(T) |
| Character Size | 4.70 mm (L)×2.40 mm(W) |
| Active Area | 2.40 mm(L)×4.70 mm(W) |
| Text Color | Blue/Green |
| Format | 20 x 2 |
Interface:
| RS232 TTL | 19200 to 19200 |
| Buffer | 80 Bytes |
| USB | 19200 |
Electrical:
| Standard Temperature | 0°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 9 mA |
| Backlight Current | N/A |
| Inrush Current | N/A |
| Part No. | Description | Price | |
|---|---|---|---|
| VK202-24-USB | Base Product | $104 |
