MOS-AL202C-WB3SE

---

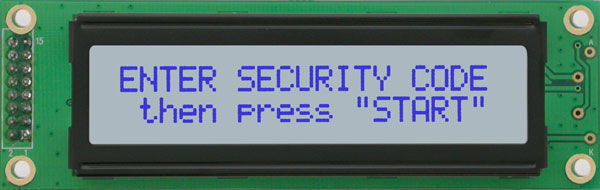

This 20 character by 2 line LCD display comes with an easy to use RS232 communication interface and 3 General Purpose Outputs.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:

---

Keypad	N/A
One Wire	N/A
GPO	3

Appearance:

---

Module Size	116.00 mm(L)×37.00 mm(W)×27.50 mm(T)
Character Size	3.20 mm(L)×5.55 mm(W)
Active Area	73.50 mm(L)×11.50 mm(W)
Background Color	White
Text Color	Blue
Format	20 x 2

Interface:

---

RS232 TTL	9600 to bps
Buffer	128 Bytes

Electrical:

---

Standard Temperature	0°C to 50°C
Max Humidity	90%
Supply Current	39 mA
Backlight Current	198 mA

Part No.	Description	Price
MOS-AL202C-WB3SE	Base Product	$40
