MX512 Display Module

MX512

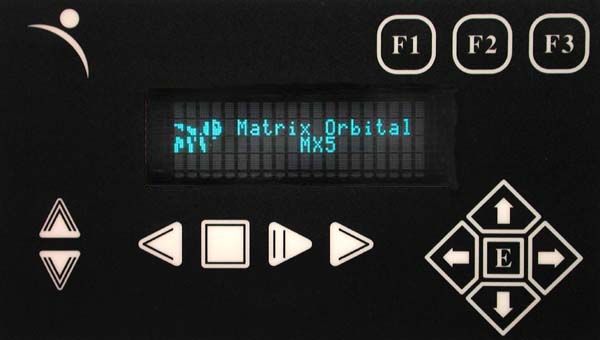

With the new MX5 series we have enlarged the size of the display and added more keypad functionality. This double drive bay PC insert incorporates a vacuum florescent 20 character x 4 line USB display and a 15 button keypad. The MX5 also allows you to plug 4 fans and 6 temperature probes directly into the back of the unit for all you quiet and cooling PC needs. Includes everything you will need to get going.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad15
One Wire6
GPO3
Advanced GPO4

Appearance:


Module Size98.00 mm(L)×60.00 mm(W)×24.40 mm(T)
Character Size2.40 mm(L)×4.70 mm(W)
Active Area70.40 mm(L)×20.80 mm(W)
Background ColorDark
Text ColorBlue
Format20 x 4

Interface:


RS232 TTL19200 to
Buffer80 Bytes
USB19200

Electrical:


Standard Temperature0°C to 70°C
Max Humidity90%
Supply Current5 mA
Backlight Current260 mA
Inrush Current260 mA

Part No. Description Price
MX512 Base Product $149
