MX513

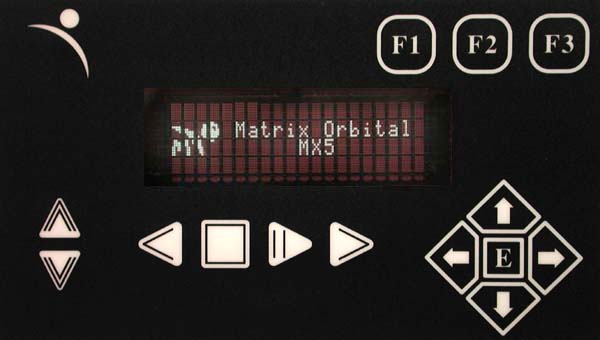

With the new MX5 series we have enlarged the size of the display and added more keypad functionality. This double drive bay PC insert incorporates a vacuum florescent 20 character x 4 line USB display and a 15 button keypad. The MX5 also allows you to plug 4 fans and 6 temperature probes directly into the back of the unit for all you quiet and cooling PC needs. Includes everything you will need to get going.
VK204-24-USB Technical Manual
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | 15 |
| One Wire | 6 |
| GPO | 3 |
| Advanced GPO | 4 |
Appearance:
| Module Size | 98.00 mm(L)×60.00 mm(W)×24.40 mm(T) |
| Character Size | 2.40 mm(L)×4.70 mm(W) |
| Active Area | 70.40 mm(L)×20.80 mm(W) |
| Background Color | Dark |
| Text Color | White |
| Format | 20 x 4 |
Interface:
| RS232 TTL | 19200 to |
| Buffer | 80 Bytes |
| USB | 19200 |
Electrical:
| Standard Temperature | 0°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 5 mA |
| Backlight Current | 260 mA |
| Inrush Current | 260 mA |
| Part No. | Description | Price | |
|---|---|---|---|
| MX513 | Base Product | $149 |
