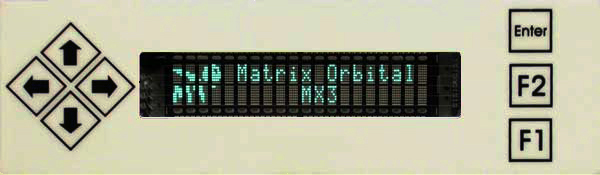

MX300 Display Module

MX300


The MX3 series digital bay bus with the most advanced software allows you more control over your fans, delivers fast speeds and clarity of information like no other PC Bay Insert for all your cooling and quiet PC needs.As with all our other MX series we also offer you the most in accessories such as Temperature Probes and the LED Indicator.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad7
One Wire4
GPO3
Advanced GPO3

Appearance:


Module Size146.00 mm(L)×43.00 mm(W)×60.00 mm(T)
Character Size4.70 mm(L)×2.40 mm(W)
Active Area73.50 mm(L)×11.50 mm(W)
Text ColorBlue
Format20 x 2

Interface:


RS232 TTL19200 to
Buffer80 Bytes
USB19200

Electrical:


Standard Temperature0°C to 70°C
Supply Current25 mA
Backlight Current115 mA
Inrush CurrentN/A

Part No. Description Price
MX300 Base Product $129
