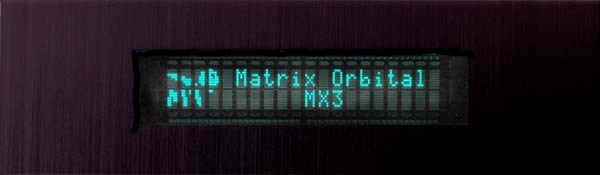

MX334 Display Module

MX334


The MX3 series digital bay bus with the most advanced software allows you more control over your fans, delivers fast speeds and clarity of information like no other PC Bay Insert for all your cooling and quiet PC needs.As with all our other MX series we also offer you the most in accessories such as Temperature Probes and the LED Indicator.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad7
One Wire4
GPO3
Advanced GPO3

Appearance:


Module Size146.00 mm(L)×43.00 mm(W)×60.00 mm(T)
Character Size4.70 mm(L)×2.40 mm(W)
Active Area73.50 mm(L)×11.50 mm(W)
Background ColorBlack
Text ColorGreen
Format20 x 2

Interface:


RS232 TTL19200 to
Buffer80 Bytes
USB19200

Electrical:


Standard Temperature0°C to 70°C
Max Humidity90%
Supply Current25 mA
Backlight Current115 mA
Inrush Current115 mA

Part No. Description Price
MX334 Base Product $129
