GLK240128-25-422-FGW Display Module

GLK240128-25-422-FGW

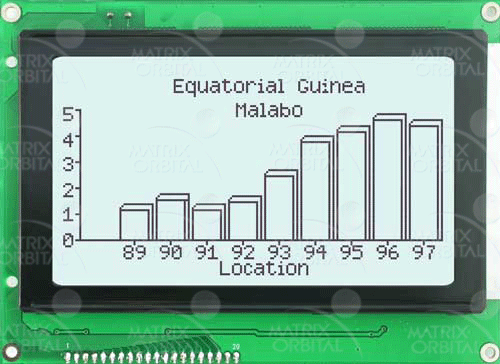

The GLK240128-25 is a large FSTN Grey/White graphic display that gives you the room to display many pictures and text all at the same time. Our graphic displays offer you high speeds and an easy to use command interface. This gives you the flexibility to quickly download high quality fonts in any size, style or language, and create graphics using primitives such as bitmaps, pixels, lines, rectangles and bar graphs. Now available in RS422!

We HIGHLY Recommends that you use a VPT module for any RS422 units.Due to the industrial nature of RS422, VPT modules add a layer of protection, increased efficiency and create a more reliable system.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad25
LCD TypeFSTN

Appearance:


Pixels128(Rows)×240(Cols)
Background ColorWhite
Text ColorGrey

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%

Part No. Description Price
GLK240128-25-422-FGW Base Product $204
GLK240128-25-422-FGW-E Extended Temperature option. $214
GLK240128-25-422-FGW-VPT Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. $224
GLK240128-25-422-FGW-VPT-E Wide Voltage efficient power regulator +9 to +35Vdc. Extended Temperature -20 to +70 C. $234
