GLK240128-25-USB-FGW Display Module

GLK240128-25-USB-FGW

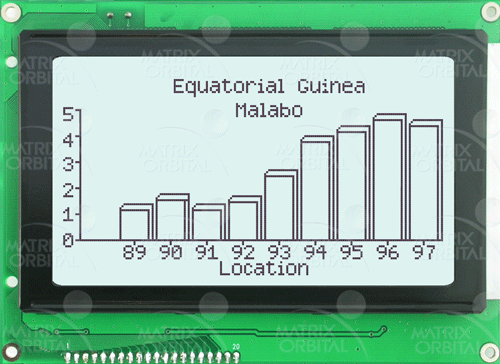

The GLK240128-25-USB is a large FSTN Grey/White graphic display that gives you the room to display many pictures and text all at the same time. Our graphic displays offer you high speeds and an easy to use command interface. This gives you the flexibility to quickly download high quality fonts in any size, style or language, and create graphics using primitives such as bitmaps, pixels, lines, rectangles and bar graphs. Now available in USB!

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad25
LCD TypeFSTN

Appearance:


Module Size144.00 mm(L)×104.00 mm(W)×15.00 mm(T)
Pixels128(Rows)×240(Cols)
Active Area114.00 mm(L)×64.00 mm(W)
Background ColorWhite
Text ColorGrey

Interface:


Buffer120 Bytes
USB19200 33600 56700 115200
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current47
Backlight Current240 mA
Inrush CurrentN/A

Part No. Description Price
GLK240128-25-USB-FGW Base Product $201
GLK240128-25-USB-FGW-E Extended Temperature option. $211
