GLK19264A-7T-1U-WB Display Module

GLK19264A-7T-1U-WB

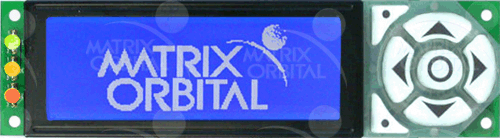

This is a serial (RS232, I2C) 192 by 64 pixel graphic LCD with a 7 key tactile keypad and 3 status indicating LEDs. Fits into a 1U opening.

Please note: this is a new product using PCB revision 2.0.

Software
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad7
One WireN/A
GPO6
Advanced GPON/A

Appearance:


Module Size144.00 mm(L)×38.00 mm(W)×33.00 mm(T)
Pixels64(Rows)×192(Cols)
Active Area74.85 mm(L)×24.93 mm(W)
Background ColorBlue
Text ColorWhite

Interface:


RS2329600 to 115200
RS232 TTL9600 to 115200
Buffer128 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current90 mA
Backlight Current125 mA
Inrush CurrentN/A

Part No. Description Price
GLK19264A-7T-1U-WB Base Product $100
GLK19264A-7T-1U-WB-E Extended Temperature option. $110
GLK19264A-7T-1U-WB-LV Low Voltage Power +3.3V $103
GLK19264A-7T-1U-WB-LV-E Low Voltage Power +3.3V. Extended Temperature Option. $113
GLK19264A-7T-1U-WB-VPT Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. $120
GLK19264A-7T-1U-WB-VPT-E Wide Voltage efficient power regulator +9 to +35Vdc. Extended Temperature -20 to +70 C. $130
