GLK19264A-7T-1U-USB-YG Display Module

GLK19264A-7T-1U-USB-YG

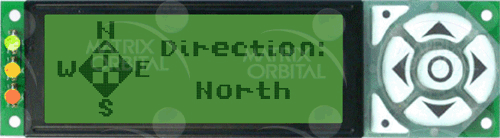

This is a USB 192 by 64 pixel graphic LCD with a 7 key tactile keypad and 3 status indicating LEDs. Fits into a 1U opening.

Please note: this is a new product using PCB revision 2.0.

Software
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad7
One WireN/A
GPO6
Advanced GPON/A

Appearance:


Module Size144.00 mm(L)×38.00 mm(W)×33.00 mm(T)
Pixels64(Rows)×192(Cols)
Active Area74.85 mm(L)×24.93 mm(W)
Background ColorYellow/Green
Text ColorBlack

Interface:


Buffer128 Bytes
USB19200 33600 56700 115200

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current90 mA
Backlight Current140 mA
Inrush CurrentN/A

Part No. Description Price
GLK19264A-7T-1U-USB-YG Base Product $100
GLK19264A-7T-1U-USB-YG-E Extended Temperature option. $110
