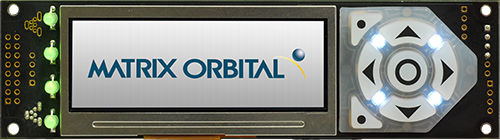

GTT29A-TPN-BLM-B0-H1-CU-VPT Display Module

GTT29A-TPN-BLM-B0-H1-CU-VPT


GTT29A is a full colour TFT display with an integrated keypad, crafted to become a crisp, controllable canvas for creativity. Utilizing an extended version of our widely used command library and industry standard communication protocols, the customizable GTT29A series contains an intelligent display that will quickly become the gorgeous face of your application.

  • Full 16bit color graphic 2.9' 320x102 TFT display
  • Available communication interfaces: RS232, I2C, TTL and USB
  • Resistive Touch panel and 7 buttons keypad
  • Two available voltage options: 5 Vdc or 9-35 Vdc
  • 2 GB of on-board memory for fonts, animations, graphics and graphs
  • A powerful Cortex M3 processor running at 120MHz
  • 32MB of RAM
  • Programmable to display any language
  • Piezo Buzzer and vibratory motor to provide audio and tactile feedback
  • 6 General Purpose Outputs
  • Simple command structure for fast and easy development
  • Hardware flow control

This is a 2.9' Touch Screen 320x102 TFT, USB Interface, 9V-35V Power.

Software
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad7
GPO6
LCD TypeGraphic TFT Touch
PolarizerTransmissive
ModelA

Appearance:


Module Size140.00 mm(L)×38.00 mm(W)×21.95 mm(T)
Pixels320(Rows)×102(Cols)
Active Area70.08 mm(L)×22.34 mm(W)
Background ColorBlack
Text ColorFull Color

Interface:


Buffer4096 bytes Bytes
OtherPiezo Buzzer, Tactical Feedback

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity0%
Supply Current275 mA
Backlight Current150 mA

Part No. Description Price
GTT29A-TPN-BLM-B0-H1-CU-VPT Base Product $169
