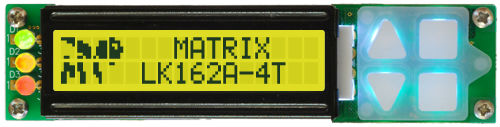

LK162A-4T
The LK162A-4T is a powerful intelligent interface for even the smallest applications.
Featuring a 16 character by 2 line serial LCD (RS232/TTL/I2C) which offers an entirely new 4 key tactile keypad with 3 versatile bi-colour status indicating LEDs all within a half 1U height package.
Has a custom start up screen, easy-to-use command structure and provides the ability to use up to 8 custom characters and store up to 40. Experience the Matrix Orbital advantage.
LK162A-4T Manual
Cables
LCD Selection Guide
Keypad Selection Guide
Features:
| Keypad | 4 |
| GPO | 2 |
| Advanced GPO | BiColour LEDs |
Appearance:
| Module Size | 96.40mm(L)×23.00mm(W)×31.14mm(T) |
| Pixels | 2(Rows)×16(Cols) |
| Character Size | 3.95(L)×2.45(W) |
| Active Area | 51.60mm(L)×11.90mm(W) |
| Background Color | Yellow/Green |
| Text Color | Black |
Interface:
| RS232 | 1200 to 19200 |
| RS232 TTL | 1200 to 19200 |
| Other | I2C |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Extended Temp.(-E) | -20°C to 70°C |
| Supply Current | 50mA |
| Backlight Current | 25mA |
| Part No. | Description | Price | |
|---|---|---|---|
| LK162A-4T | Compact 2x16 serial LCD includes 3 dual colour LED's, 4 key tactile keypad and 2 GP Outputs | $57 | |
| LK162A-4T-FGW | Compact 2x16 serial LCD includes 3 dual colour LED's, 4 key tactile keypad and 2 GP Outputs | $57 | |
| LK162A-4T-TCI | Compact 2x16 serial LCD includes 3 dual colour LED's, 4 key tactile keypad and 2 GP Outputs | $57 | |
| LK162A-4T-WB | Compact 2x16 serial LCD includes 3 dual colour LED's, 4 key tactile keypad and 2 GP Outputs | $57 | |
| LK162A-4T-E | Compact 2x16 serial LCD includes 3 dual colour LED's, 4 key tactile keypad and 2 GP Outputs | $67 | |
| LK162A-4T-FGW-E | Compact 2x16 serial LCD includes 3 dual colour LED's, 4 key tactile keypad and 2 GP Outputs | $67 | |
| LK162A-4T-TCI-E | Compact 2x16 serial LCD includes 3 dual colour LED's, 4 key tactile keypad and 2 GP Outputs | $67 | |
| LK162A-4T-WB-E | Compact 2x16 serial LCD includes 3 dual colour LED's, 4 key tactile keypad and 2 GP Outputs | $67 |
