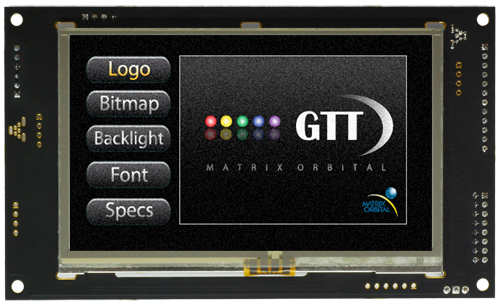

GTT43A-TPC-BLM-B0-H1-C4-V5 Display Module

GTT43A-BLM-B0-H1-C4

Bring your project to life with an abundance of colors, controllable with an easy-to-use touch screen with the added option of using a matrix style keypad.

With our extensive selection of interface options communicating will always be easy!

Introducing the new re-designed GTT Series with smart new features and faster speeds!

  • Full 16bit color graphic 4.3' 480x272 TFT display
  • Available communication interfaces: RS232, I2C, TTL, RS422 and USB
  • Resistive or Capacitive Touch panel and 25 key matrix style keypad
  • Two available voltage options: 5 Vdc or 9-35 Vdc
  • 2 GB of on-board memory for fonts, animations, graphics and graphs
  • A powerful Cortex M3 processor running at 120MHz
  • 32MB of RAM
  • Programmable to display any language
  • Piezo Buzzer and vibratory motor to provide audio and tactile feedback
  • 6 General Purpose Outputs
  • Simple command structure for fast and easy development
  • Hardware flow control

This is a 4.3' Touch Screen 480x272 TFT, Serial RS422 Interface.

Software
GTT Developer Manual
GTT Protocol Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:

Keypad25
GPO6
LCD TypeGraphic TFT Touch
PolarizerTransmissive
ModelA

Appearance:

Module Size135.100 mm(L)×80.500 mm(W)×17.100(T)
Pixels272(Rows)×480(Cols)
Active Area93.040 mm(L)×53.860 mm(W)
Background ColorBlack
Text ColorFull Color

Interface:

Buffer4096 bytes Bytes
OtherPiezo Buzzer, Tactical Feedback

Electrical:

Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity0%
Supply Current290 mA
Backlight Current185 mA

Part No. Description Price
GTT43A-TPR-BLM-B0-H1-C4-V5 Resistive panel 4.3' Touch Screen 480x272 TFT, Serial RS422 Interface, 5V Power. $156
GTT43A-TPR-BLM-B0-H1-C4-VPT Resistive panel 4.3' Touch Screen 480x272 TFT, Serial RS422 Interface, 9-35V Power. $166
GTT43A-TPC-BLM-B0-H1-C4-V5 Capacitive panel 4.3' Touch Screen 480x272 TFT, Serial RS422 Interface, 5V Power. $166
GTT43A-TPC-BLM-B0-H1-C4-VPT Capacitive panel 4.3' Touch Screen 480x272 TFT, Serial RS422 Interface, 9-35V Power. $176
