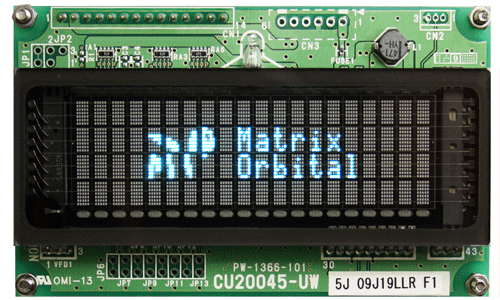

MOS-AV204A
The MOS-AV204A is an economy 20x4 intelligent Serial VFD display. Engineered to quickly and easily add a powerful HMI to any application. VFD Displays offer exception performance in extreme temperatures, keeping their quick response times, high (170 degree) viewing angle and long life.
Our Intelligent Character Serial VFD displays provides you with a cost-effective industrial HMI user interface solution for that great product/project you are developing. This Serial VFD displays features optional on-board medium digits, bar graphs and 3 GPOs will allow fast development for any application.
Economy Series Manual
X-Board Hardware Manual
Cables
VFD Filters
Keypad Selection Guide
Features:
| Keypad | N/A |
| One Wire | N/A |
| GPO | 3 |
| Character Set | English/European |
Appearance:
| Module Size | 98.00 mm(L)×60.00 mm(W)×24.40 mm(T) |
| Character Size | 2.40 mm(L)×4.70 mm(W) |
| Active Area | 70.80 mm(L)×20.90 mm(W) |
| Background Color | N/A |
| Text Color | Blue/Green |
| Format | 20 x 4 |
Interface:
| RS232 | 9600 to 19200 |
| RS232 TTL | 9600 to 19200 |
| Buffer | 128 Bytes |
Electrical:
| Standard Temperature | -20°C to 70°C |
| Max Humidity | 90% |
| Supply Current | 25 mA |
| Backlight Current | 130 mA |
| Inrush Current | 260 mA |
| Part No. | Description | Price | |
|---|---|---|---|
| MOS-AV204A | Base Product | $80 |
