HTT101F-TPN-BLH-B0-H5-CH-VS Display Module

HTT101F-TPN-BLH-B0

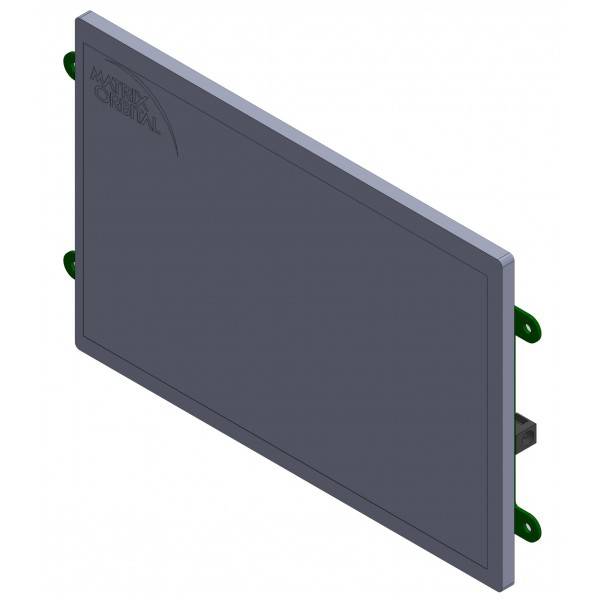

The HTT101F is a 10.1 inch Embedded HDMI IPS TFT HMI plug and play display that features a full color 1280x800 10.1' HDMI TFT, automatic resolution detection and a 24bit DVI/HDMI interface. The resistive, capacitive, or non-touch modules are compatible with a wide range of systems including: Raspberry Pi, Windows, iMX, Linux and BeagleBone. From the hobbyist to the high volume industrial application, the HTT Series was designed to satisfy a wide range of customer application requirements.

  • 1280x800 10.1' HDMI IPS TFT Display
  • Upgradable touch driver firmware
  • Automatic HDMI EDID
  • Sunlight readable, 750 cd/m2
  • USB for touchscreen
  • Touch Digitizer HID
  • Horizontal or Vertical headers for easy Panel Mounting
  • 5V or 9-15V Industrial Power Input
  • Operating Temp: -20 to +70C
  • Low profile 3M mounting holes
  • Semi-Custom designs available

Software
HTT Utility Guide
Quick Start Guide for HTT Series
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


KeypadN/A
One WireN/A
GPON/A
Advanced GPON/A
LCD TypeTFT
PolarizerTransmissive
ModelA
ControllerTFP401A+LPC11U23

Appearance:


Pixels1280(Rows)×800(Cols)
Active Area217.0mm(L)×135.6mm(W)
Background ColorBlack
Text ColorFull Color

Interface:


OtherHDMI

Electrical:


Standard Temperature-20°C to 70°C
Extended Temp.(-E)-30°C to 80°C
Supply Current375 mA

Part No. Description Price
HTT101F-TPN-BLH-B0-H5-CH-VS Plug and play 10.1' inch IPS HDMI display, full color 1280x800 TFT, non-Touch, Horizontal headers $196
HTT101F-TPN-BLH-B0-H6-CH-VS Plug and play 10.1' inch IPS HDMI display, full color 1280x800 TFT, non-Touch, Vertical headers $196
