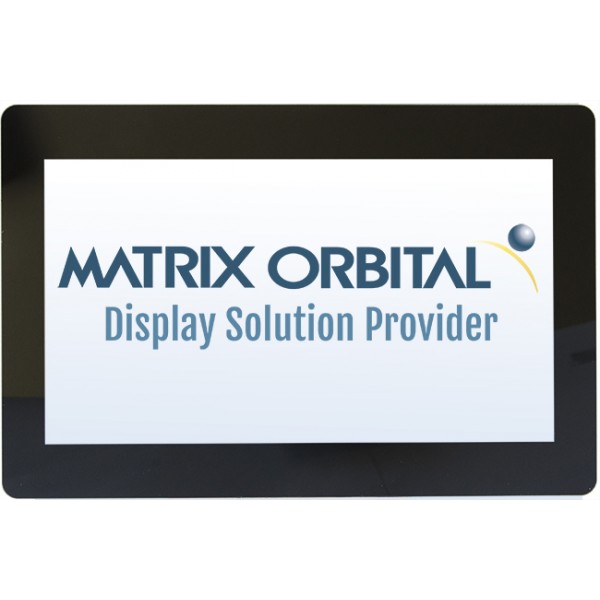

EVE2-70G-BLM-TPC Display Module

EVE2-70G-BLM


The Matrix Orbital EVE2 SPI TFT utilizes the FTDI FT813 EVE (Embedded Video Engine) to create fast and economical HMI systems. With built in graphics operations, sound synthesizer, digital filter and support for multiple widgets you can create your own stunning screens and interfaces with the EVE Screen Designer software.

  • 7.0' 800x480 WVGA - Oversized Mountable Capacitive Touch TFT
  • Easy mounting and stylish design
  • 3M 300LSE adhesives
  • FT813 24bit TFT GPU
  • 1 MB graphics RAM
  • 3.3V
  • SPI TFT interface
  • Integrated backlight PWM LED Driver
  • Standard 20 Pin Connector
  • Mono 8-bit linear audio wave playback
  • SPI and QSPI communication protocol
  • Advanced Embedded Video Engine (EVE) with high resolution graphics and video playback
  • EVE Screen Designer (ESD) GUI drag and drop design suite
  • Supports multiple widgets
  • Supports landscape or portrait orientations
  • Supports playback of motion-JPEG encoded AVI videos
  • Extended Operating temperature range: -20oC to 70oC
  • Fast and easy development
  • Designed, supported and Made in CANADA
  • Long life cycle
  • Customer silk screening available
  • Semi-custom designs available
  • Long life production
  • Backed my Matrix Orbital`s decades of research and development

Software
Hardware Manual for EVE2 Module
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


KeypadN/A
One WireN/A
GPO4
Advanced GPON/A
LCD TypeTFT
PolarizerTransmissive
ModelA
ControllerFT81x

Appearance:


Pixels800(Rows)×480(Cols)
Active Area153.84 mm(L)×85.63 mm(W)
Background ColorBlack
Text ColorFull Color

Interface:


Buffer1MB Bytes
OtherSPI/QSPI/Speaker

Electrical:


Standard Temperature-20°C to 70°C
Extended Temp.(-E)-30°C to 80°C
Supply Current50mA
Backlight Current70mA

Part No. Description Price
EVE2-70G-BLM-TPC 7.0' 800x480 EVE2 FT813 TFT - Oversize Mountable Capacitive Touch, SPI module $108
