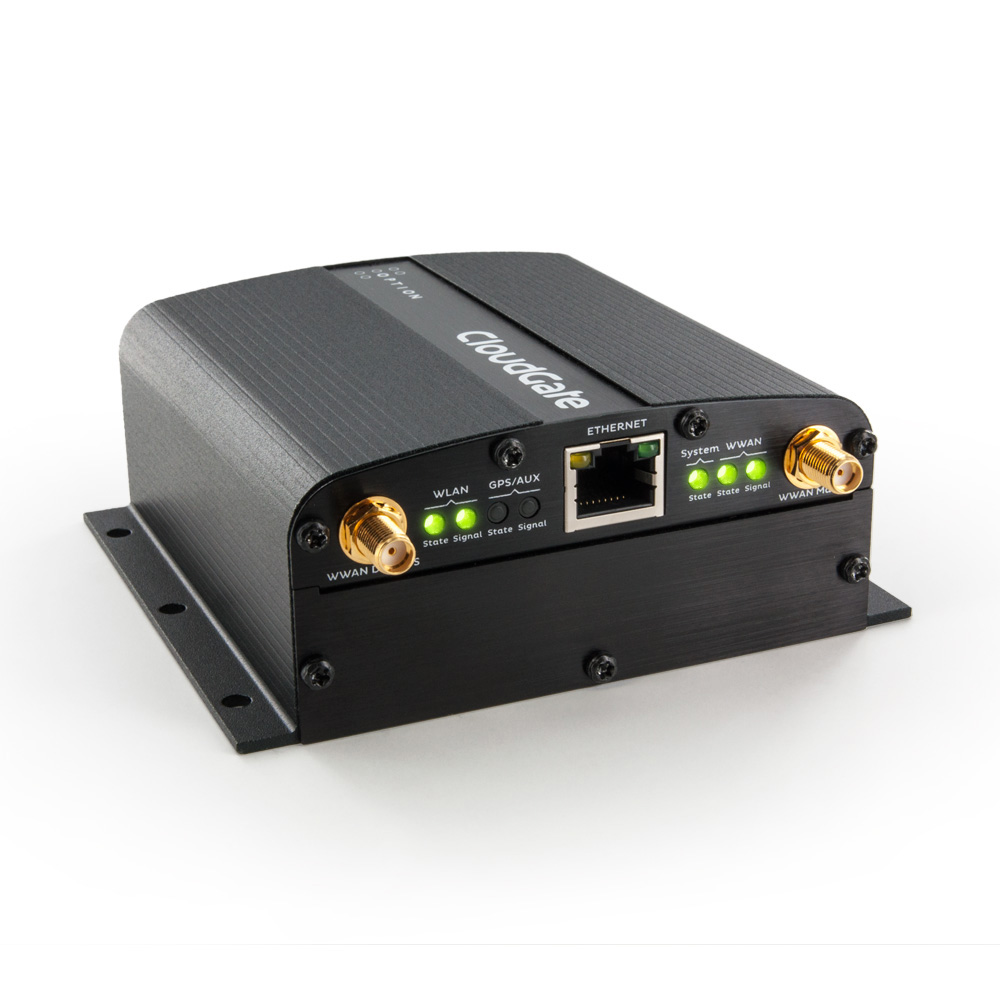

CG0114-12019

CloudGate LTE delivers a faster, richer and smoother LAN to WWAN routing and GPS functionality in a single basic unit certified on all major USA cellular operators (LTE Bands 4/13/17 with 3G Fall back to HSPA+).
In addition CloudGate LTE is equipped with many new features: ignition sensing & timed wakeup - ideal for telematics and solar applications, expanded RAM, Flash and an SD memory slot - great for running more sophisticate applications on the CloudGate.

 CG0114-12019 - CloudGate M2M Gateway with Ethernet and Active GPS - LTE Bands 2,4,13,17 - HSPA+
Part No. Description Price Stock
CG0114-12019 CloudGate M2M Gateway with Ethernet and Active GPS - LTE Bands 2,4,13,17 - HSPA+ $440 6

SPECIFICATIONS

Features Sub Feature Description
WWAN
Modem
LTE
 Supported frequency
bands
  • 700/800/850/900/1800/1900/2100/2600/AWS
    (B 1-5, 7, 8, 13, 17, 18, 19, 20)
Max. connectivity
speeds
  • 100Mbps down - 50Mbps up (Cat 3) Theoretical LTE
    data rates
WWAN
Modem
3G/2G
 Supported frequency
bands
  • UMTS/HSDPA/HSUPA/HSPA+: 850/900/1900/2100
    MHz and AWS band (1700/2100 MHz) (B 1, 2, 4, 5, 8)
  • GSM/GPRS/EDGE: 850/900/1800/1900 MHz
Max. Connectivity
speeds
  • DC-HSPA+: 42 Mbps (Cat 24) down 11.5 (Cat 7) up
Rx Diversity
  • Simultaneous Equalization and Rx Diversity on all bands
WWAN
Antenna
 Antenna connector
  • 1 Χ SMA: WWAN Main
  • 1 Χ SMA: WWAN Div/GPS
GPS
  • High sensitivity A-GPS /A-GLONASS receiver (SUPL 1.0
    & SUPL 2.0)
Ethernet
(IEEE 802.3)
  • 10/100Mb/s RJ45 Connector
Visual
feedback
  • Seven 3 color LEDs showing system status and signal
    strength
SIM
 USIM/SIM connection
  • Class B and Class C
Expansion Slot
1 & 2
  • Expansion board for IO functions such as serial, USB,
    GPIO, WLAN, Accelerometer, Wireless Sensor Networks
microSD card
reader
  • For additional storage (FAT32)
Power control
  • Timed wakeup
CloudGate
Universe
  • Device can be configured OTA using CloudGate Universe
Power
 DC Power in
  • 9-33 V DC
Connector type
  • Micro-Fit 3.0™, Dual row, 4 circuits
Case
 Dimension
  • 115 Χ 105 Χ 45 mm (4.53in Χ 4.13in Χ 1.77in)
Weight
  • 304 g
Mounting
  • Bulkhead - 4x M4 holes
  • DIN rail - with adapter
Enviromentals
 Operating temperature
  • -30°C to 70°C
Storage temperature
  • -40°C to +70°C
Humidity operational
  • 5% - 95%
Certification
  • CE, FCC, IC, PTCRB
Standard
compliance
  • ROHS, Reach

Features

  • High speed LTE
  • Automatic connection monitoring and error recovery
  • Secure, redundant firmware and configuration images
  • Unique software and hardware configuration flexibility
  • Automatic provisioning of custom middleware
  • Expandable memory storage
  • Warranty Period: 3 years
