Features

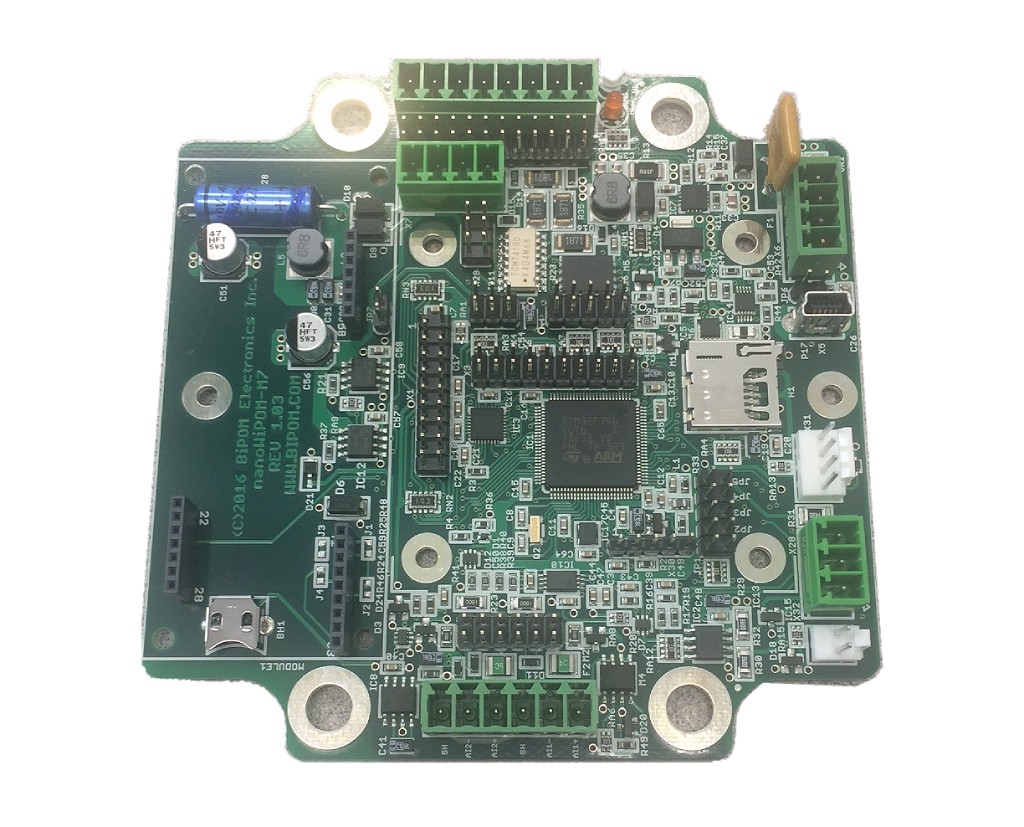

• Based on the STM32F746VGT6 Cortex-M7 micro-controller
• 8-MByte SPI DATAFlash
• Micro-SD holder (up to 32 GB by inserting SDHC Card)
• Choice of LTE or 3G modem
• One USB device port
• One RS485 serial port
• Two RS232 serial ports ( one overlapped with RS485 )
• Analog input terminals (2 x 4-20mA or 2 X 0-5V, jumper selectable), 12-bit resolution.
• Digital input terminals (4 x dry contacts), also used as frequency and pulse counter inputs.
• Digital output terminals (2 x 0.5A)
• LED's for status
• 3V battery holder for real-time clock
• 10-30 Volt input power range ( needed for 4-20mA ) or 5V USB operation
• Windows based WRTU Client allows data upload and tag configuration
• Warranty Period: 3 years
