CG5106-11984

This product has been discontinued. Please contact BiPOM to have this product custom manufactured for you.

The Telematics Card allows the CloudGate to be used in advanced industrial telematics applications. The board can accept a range of Option or third party I/O expanders that match the card and I/O connector for specific applications.

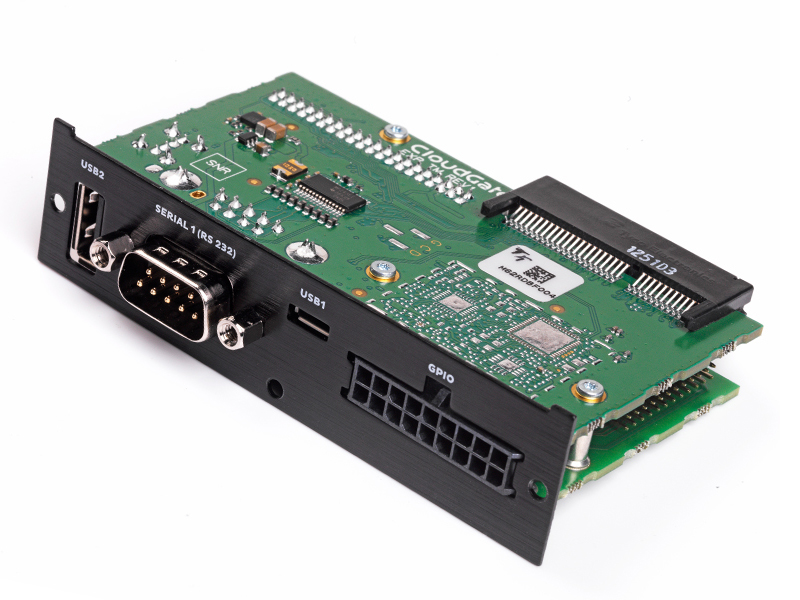

 CG5106-11984 - Telematics Expansion Card with Extended IO and CAN Bundle

The base card (CG1106) adds a 3-axis accelerometer with hardware motion detection, dual SIM slots for a backup or roaming SIM card as well as the primary SIM card, USB and USB on-the-go ports and a DTE DB9 serial port with power over serial support.

The optional I/O expander daughterboard exposes a range of different I/O options including a second serial port, analog and digital inputs and digital outputs. Using different I/O expanders different levels of isolation and voltage ranges can be achieved. I/O Expander including CAN bus is also available. Other I/O configurations including relays, isolated inputs, etc. can be developed on request.

Features

  • Adds flexible I/O and connectivity for industrial telematics applications to CloudGate
  • Built-in 3 axis accelerometer for movement detection and other applications
  • Dual SIM card reader for backup or roaming SIM
  • Built-in microcontroller offloads all I/O from CloudGate
  • Warranty Period: 3 years
