OK162-12

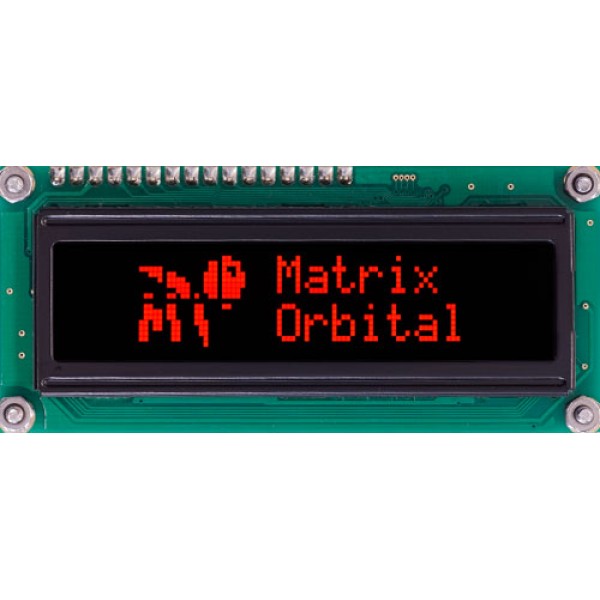

The OK162-12 is a 16 x 2 character alphanumeric display that uses Organic Light Emitting Diode (OLED) technology. OLED technology improves readability by offering a high contrast display with wide viewing angles and requires significantly less power to operate than VFD or even LCD units.
This unit is used in a variety of industrial applications such as computer server systems and web application control systems. The OK162-12 is available with a variety of communication interfaces, including RS232, TTL, and I2C. These OLED intelligent displays are 16 characters by 2 lines displays are available in 5 colors and many options to give your project a quick launch to market.

 OK162-12 - 16x2 OLED 1U HMI,RS232/TTL/I2C interface,White text
Part No. Description Price Stock
OK162-12-OW 16x2 OLED 1U HMI,RS232/TTL/I2C interface,White text $50 ∗
OK162-12-OW-E 16x2 OLED 1U HMI,RS232/TTL/I2C interface,White text,Extended Temp. -20 to +70 C. $60 ∗
OK162-12-OW-V 16x2 OLED 1U HMI,RS232/TTL/I2C interface,White text,Wide Voltage power +9 to +15Vdc $53 ∗
OK162-12-OW-V-E 16x2 OLED 1U HMI,RS232/TTL/I2C interface,White text,+9 to +15Vdc power, Extended Temp. -20 to +70 C. $63 ∗
OK162-12-OY 16x2 OLED 1U HMI,RS232/TTL/I2C interface,Yello text $50 ∗
OK162-12-OY-E 16x2 OLED 1U HMI,RS232/TTL/I2C interface,Yello text,Extended Temp. -20 to +70 C. $60 ∗
OK162-12-OY-V 16x2 OLED 1U HMI,RS232/TTL/I2C interface,Yello text,Wide Voltage power +9 to +15Vdc $53 ∗
OK162-12-OY-V-E 16x2 OLED 1U HMI,RS232/TTL/I2C interface,Yello text,+9 to +15Vdc power, Extended Temp. -20 to +70 C. $63 ∗
OK162-12-USB-OW 16x2 OLED 1U HMI,USB interface,White text $55 ∗
OK162-12-USB-OW-E 16x2 OLED 1U HMI,USB interface,White text,Extended Temp. -20 to +70 C. $65 ∗
OK162-12-USB-OY 16x2 OLED 1U HMI,USB interface,Yello text $55 ∗
OK162-12-USB-OY-E 16x2 OLED 1U HMI,USB interface,Yello text,Extended Temp. -20 to +70 C. $65 ∗
∗ Standard lead time is 1 week

Specification

Module
Family/Series Intelligent Display
Module Width (mm) 80
Module Height (mm) 36
Screen
Display Type Character OLED
Viewing Area Width (mm) 66
Viewing Area Height (mm) 16
Active Area Width (mm) 56.95
Active Area Height (mm) 11.85
Resolution Width (Pixels) 80
Resolution Height (Pixels) 16
Pixel Pitch Width (mm) 0.6
Pixel Pitch Height (mm) 0.7
Pixel Width (mm) 0.55
Pixel Height (mm) 0.65
Character Columns 16
Character Rows 2
Character Pitch Width (mm) 3.6
Character Pitch Height (mm) 6.3
Character Width (mm) 2.95
Character Height (mm) 5.55
Font Multilingual
Viewing Direction Any
Viewing Angle 160
HMI
Touchscreen None
Keys 12
Haptic Feedback None
Audio Feedback None
GPO's 7
Advanced GPO's None
DOW Optional, 1
Integrated LED's None
Electrical
Interface RS232, TTL, I2C, USB
Command Protocol Matrix Orbital
Controller Atmega8535
Minimum Voltage (Vdc) 5
Typical Voltage (Vdc) 5, 9-15
Maximum Voltage (Vdc) 15
Header Standard
Environmental
Min. Operating Temp. (°C) -20, -40
Max. Operating Temp. (°C) 70, 80
Min. Storage Temp. (°C) -40
Max. Storage Temp. (°C) 80
