CELIA-U

CELIA series of products are cellular internet appliances with USB, or RS232 interface to a host computer. CELIA adds wireless connectivity to many devices such as embedded microcontroller boards, PLC's, industrial equipment, instruments, PC's, PLC's, laptops and tablets - without the cost and delay of obtaining FCC and carrier certification. The board has a Nimbelink Skywire™ LTE CAT4 cellular modem module with up to 150 Mbit/second in downlink, 50 Mbit/second in uplink. The small form factor fits easily in many enclosures, instruments panels and devices.
CELIA-U - No Module Version
Part No. Description Price Stock
CELIA-U-NM No Module Version $59 1
CELIA-U-QBG96 USB TO CELL MOD, GNSS $140 ∗
CELIA-U-QBG96-SK KIT CELIA, W/ACC GLOBAL $179 ∗
CELIA-U-TC4NAG USB TO CELL MOD, North America, GNSS $201 ∗
CELIA-U-TC4NAG-ATT-D USB TO CELL MOD, North America, GNSS-CELIA unit with Verizon E-SIM and ATT SIM and DC cable $211 1
CELIA-U-TC4NAG(B) USB TO CELL MOD, North America, GNSS $201 ∗
CELIA-U-TC4NAG(B)-A USB TO CELL MOD, North America, GNSS, AC Power Supply $211 ∗
CELIA-U-TC4NAG(B)-D USB TO CELL MOD, North America, GNSS, DC Cable $211 ∗
SL-WiPOM-LD-CE Router/gateway WiPOM software license for CELIA $30 ∗
∗ Standard lead time is 1 week

CELIA is fully backed by a 3-year warranty, technical support and application assistance from BiPOM Electronics, Inc.

Features

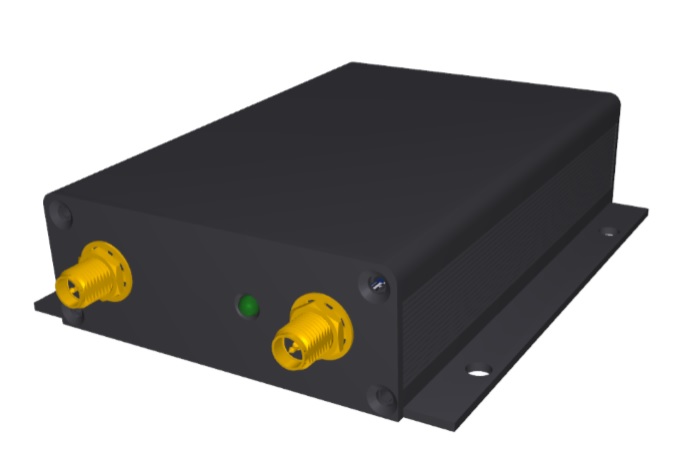

  • Compact, extruded aluminum enclosure with flanges for mounting
  • Plug-and-play operation with Linux, Windows 7,8,10 and Embedded
  • Customer can use any antenna without requiring re-certification
  • Nimbelink Skywire™ LTE CAT4 modem
  • Semtech HL7588 cellular module
  • LTE Frequency Bands B2, B4, B5, B13, B17
  • Supply voltage: 10-30VDC
  • Status LED
  • Dual SMA antenna connectors
  • Optional LTE antennas
  • SIM accessible by removing rear panel
  • Communication Method: USB or UART
  • Type B high-retention USB connector
  • 4-pin latching connector for power
  • Optional DC cable or AC adapter
  • Active call current: 650mA maximum
  • Normal current: 29mA
  • Power saving current: 1mA
  • Temperature range: -40°C to +85°C
  • Dimensions: 51 mm x 30 mm x 12 mm
  • Special DIN rail clips, available separately
  • Warranty Period: 3 years
