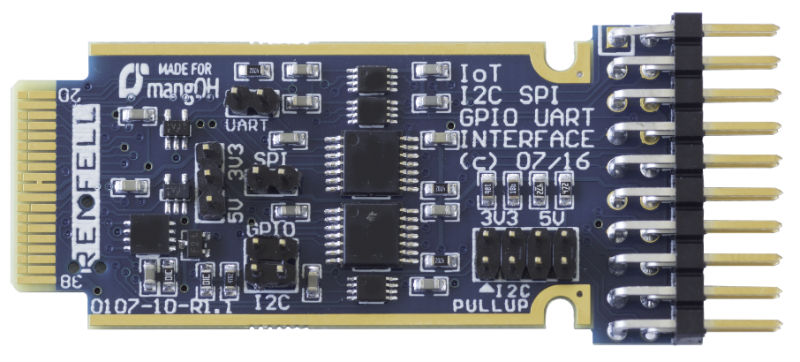

The Renfell Engineering Interface IoT card enables the developer to access some of the I/O interfaces of the mangOH™development board without having to design a custom card.
The I2C, SPI, GPIO and UART interfaces on the mangOH™ IoT slot connector are brought out to the 'outside world' on a 20 pin 0.1" pitch connector via isolation and level shifting circuitry. Devices connected to the 'outside' can be powered from either the mangOH™ supplied 3V3 or 5V supplies, or via 2V8 to 5V0 supplies on the 20pin connector.
All I/O is disabled by default and each interface can be separately enabled using the on-board jumpers. Additionally, a header block is provided with standard I2C pullups for 3V3 or 5V operation.
64 Bytes of user Read/Write EEPROM storage is provided for storage of configuration constants or other semi-permanent data.

0107-10-R1.2 - 0107-10-R1.2 - bare 20 way IDC header connector with no locking lugs, non-standard form factor exten
Part No. Description Price Stock
0107-10-R1.2 0107-10-R1.2 - bare 20 way IDC header connector with no locking lugs, non-standard form factor exten $57 88
