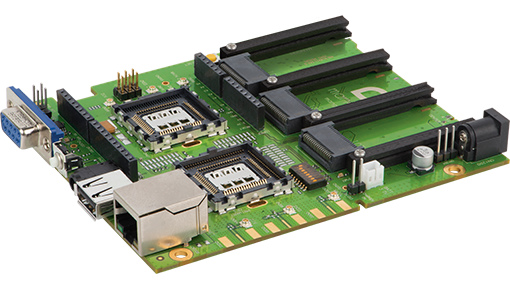

mangOH Green

mangOH™ Green is the first hardware platform that enables rapid prototyping and faster time-to-market of new IoT applications. The industrial-grade reference design offers unprecedented flexibility and expandability for collecting and sending IoT sensor data to the cloud.

mangOH Green - MANGOH GREEN Dev kit WP, no modules, ships withy Taoglas LTE antenna
Part No. Description Price Stock
6000620 MANGOH GREEN Dev Kit, HL, Snap In Socket version - Modules are not included! $480
6000648 MANGOH GREEN Dev Kit, MC, Modules are not included! New features include a heatsink and USB3.0 $445
6000656 MANGOH GREEN Dev kit WP, no modules, ships withy Taoglas LTE antenna $250
6001173 MANGOH GREEN Dev Kit, EM, no modules,New features include a heatsink and USB3.0,Replaces SKU 6000647 $445
∗ Standard lead time is 1 week


  • Connects to any 2G, 3G or 4G LTE mobile networks in the world with the CF3 based wireless modules from Sierra Wireless
  • SIM Card slot allows you to utilize Smart SIM card and its Connectivity Service that delivers multi-operator coverage, superior data service quality, and resilience to outages
  • 3 X IoT Expansion Card Connectors let you add any combination of wired, wireless and sensor technologies to your board
  • With serial and ethernet connectivity built-in, you can develop wired and wireless products without any expertise in connecting to mobile or pan networks
  • Equipped with an accelerometer and gyroscope
  • Built-in audio jack allows mangOH Red to make two-way voice calls
  • Simply connect the board to a console via USB connector
  • Offers a microSD slot for easy off-line updates and storage
  • Board can operate on single cell Lithium polymer, DC power supply or USB. There is a battery charger for charging the battery as well
  • Standard Eurocard or Custom 3D Case
  • You can plug in any Arduino Shields to the board to add hundreds of expansion possibilities
  • Open Source Linux
  • Integrated Cloud Services
