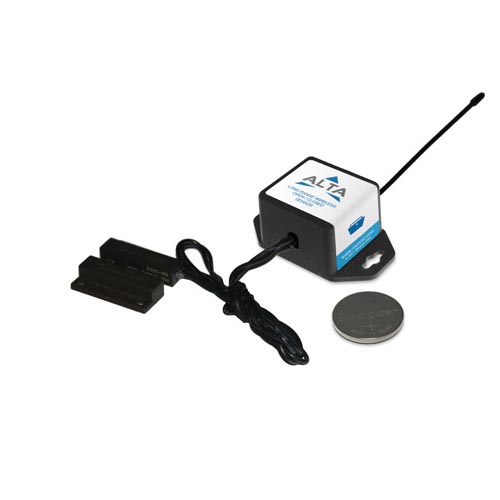

ALTA Wireless Open/Closed Sensor


ALTA wireless open/closed sensors provide information on the status of doors, windows, cabinets, etc. Know if a building or area is being accessed when it should not be, or if a door or window has been left open. Alerts can be setup to notify a user by SMS text, email or voice call if a door or window has been opened or left open.

ALTA Wireless Open/Closed Sensor - ALTA WIRELESS OPEN-CLOSED SENSORS, 900 MHz - COIN CELL POWERED
Part No. Description Price Stock
MNS2-8-W1-OC-ST ALTA WIRELESS OPEN-CLOSED SENSORS, 868 MHz - COIN CELL POWERED $88
MNS2-9-W1-OC-ST ALTA WIRELESS OPEN-CLOSED SENSORS, 900 MHz - COIN CELL POWERED $88
∗ Standard lead time is 1 week

ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 12+ years.
ALTA products employ Monnit's new Encrypt-RF® Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

Packing List


  • Sensor Magnet with Mounting Flange
  • Wireless Sensor
  • Mounting Hardware
  • CR2032 - Coin Cell Battery

Features


  • 900/868 MHz Operating Frequency
  • Contact Rating: SPST, gold under -plating with Deactivated Rhodium outer-plating
  • Switch Cycles: 50 million
  • Operation Gap: Up to 3/4 inch
  • Wire Leads: 22 gauge / 13.5 in length (+/- 1.5 in)
  • Magnet: Alnico
  • Magnet Case Construction: Weatherproof, high-impact ABS plastic with self-adhesive backing
  • Magnet Temperature Range: -15°F to 160°F (-25°C to 70°C)
  • Weight: 3.8 oz.
  • Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)
  • Battery Type: Replaceable 3.0V (CR2032) Coin Cell Battery
  • Dimension: 2.0 in x 1.125 in x 0.875 in
  • Max Operating Temperature: -7°C to +60°C ( 20°F to +140°F )
  • Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F )
  • Supply Voltage: 2.0 - 3.8 VDC
  • Battery Life: At 1 hour heartbeat setting, coin cell battery will last up to 4 years. **
  • Enclosure Technology: Monnit PinchPower™ Wireless Sensor Enclosures
  • Enclosure Material: ABS
  • Sense immediate door or window access.
  • Sense if a door, window, drawer is opened or has been left open
  • Monitor access to specific areas of buildings.

* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
