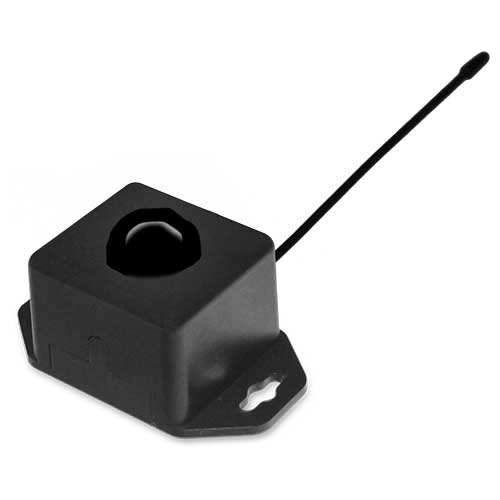

ALTA Wireless Infrared Motion Sensor


ALTA wireless motion sensors use an infrared sensing technology to accurately detect movements made by people/animals within 16.4 ft (5 m) range. User customization allows you to receive notifications by SMS text or email the instant motion is detected.

ALTA Wireless Infrared Motion Sensor - ALTA WIRELESS MOTION DETECTION SENSOR,900 MHz - COIN CELL BATTERY POWERED
Part No. Description Price Stock
MNS2-8-W1-MS-IR ALTA WIRELESS MOTION DETECTION SENSOR,868 MHz - COIN CELL BATTERY POWERED $99
MNS2-9-W1-MS-IR ALTA WIRELESS MOTION DETECTION SENSOR,900 MHz - COIN CELL BATTERY POWERED $99
∗ Standard lead time is 1 week

ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 12+ years.
ALTA products employ Monnit's new Encrypt-RF® Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

Packing List


  • Wireless Sensor
  • Mounting Hardware
  • CR2032 - Coin Cell Battery

Features


  • 900/868 MHz Operating Frequency
  • Sensing Range: 16.4 ft. (5 m)
  • Current Consumption: 3 uA
  • Wake-up Time: 7 Seconds
  • Weight: 0.7 oz.
  • Passive Infrared Technology.
  • Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)
  • Battery Type: Replaceable 3.0V (CR2032) Coin Cell Battery
  • Dimension: 2.0 in x 1.125 in x 0.875 in
  • Supply Voltage: 2.0 - 3.8 V
  • Battery Life At 1 hour heartbeat setting, coin cell battery will last up to 4 years. **
  • Max Operating Temperature: -7°C to 60°C (20°F to 140°F)
  • Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C (+50°F to +122°F)
  • Enclosure Technology: Monnit PinchPower™ Wireless Sensor Enclosures
  • Enclosure Material: ABS

* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
