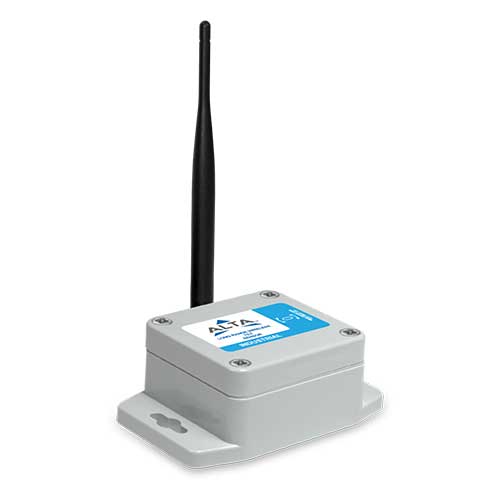

ALTA Industrial Wireless Accelerometer - Tilt Sensor


ALTA wireless accelerometers can be used in a host of applications where knowing impact, vibration, inclination, etc. is required.
The wireless accelerometer - tilt sensor activates at a set time interval (defined by user) and converts accelerometer measurements to pitch and roll (0 to 180° -> -180° to 0°). The data is displayed in degrees with 0.1° of resolution.

ALTA Industrial Wireless Accelerometer - Tilt Sensor - ALTA INDUSTRIAL WIRELESS ACCELEROMETER - TILT SENSOR, 900 MHz
Part No. Description Price Stock
MNS2-8-IN-AC-TL ALTA INDUSTRIAL WIRELESS ACCELEROMETER - TILT SENSOR, 868 MHz $209
MNS2-9-IN-AC-TL ALTA INDUSTRIAL WIRELESS ACCELEROMETER - TILT SENSOR, 900 MHz $209
MNS2-4-IN-AC-TL ALTA INDUSTRIAL WIRELESS ACCELEROMETER - TILT SENSOR, 433 MHz $220
MNS2-8-IN-AC-TL-PA ALTA INDUSTRIAL WIRELESS ACCELEROMETER - TILT SENSOR, 868 MHz,HGA $224
MNS2-9-IN-AC-TL-PA ALTA INDUSTRIAL WIRELESS ACCELEROMETER - TILT SENSOR, 900 MHz,HGA $224
MNS2-4-IN-AC-TL-PA ALTA INDUSTRIAL WIRELESS ACCELEROMETER - TILT SENSOR, 433 MHz,HGA $235
MNS2-8-IN-AC-TL-SOL ALTA INDUSTRIAL WIRELESS ACCELEROMETER - TILT SENSOR, 868 MHz, Solar w/ Rechargeable Battery $249
MNS2-9-IN-AC-TL-SOL ALTA INDUSTRIAL WIRELESS ACCELEROMETER - TILT SENSOR, 900 MHz, Solar w/ Rechargeable Battery $249
MNS2-4-IN-AC-TL-SOL ALTA INDUSTRIAL WIRELESS ACCELEROMETER - TILT SENSOR, 433 MHz, Solar w/ Rechargeable Battery $260
MNS2-8-IN-AC-TL-SOL-PA ALTA INDUSTRIAL WIRELESS ACCELEROMETER - TILT SENSOR, 868 MHz, Solar w/ Rechargeable Battery,HGA $264
MNS2-9-IN-AC-TL-SOL-PA ALTA INDUSTRIAL WIRELESS ACCELEROMETER - TILT SENSOR, 900 MHz, Solar w/ Rechargeable Battery,HGA $264
MNS2-4-IN-AC-TL-SOL-PA ALTA INDUSTRIAL WIRELESS ACCELEROMETER - TILT SENSOR, 433 MHz, Solar w/ Rechargeable Battery,HGA $275
∗ Standard lead time is 1 week

ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 12+ years.
ALTA products employ Monnit's new Encrypt-RF® Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

Monnit ALTA Industrial Sensors come in an IP65, NEMA 4X, CE rated, sealed, and weatherproof enclosure. They are powered by a single, replaceable, Industrial grade 3.6 V battery (included).

An optional solar powered version is also available. The solar powered version includes a Lithium Iron Phosphate rechargeable battery in conjunction with a solar power cell to keep the battery charged and at optimal capacity. If there is no light present at the solar cell, the battery alone could continue to power the sensor for up to 8-10 years.

Packing List


  • Wireless Sensor
  • Mounting Hardware
  • 3V Industrial Battery (Pre-Installed)/li>
  • SMA Antenna

Features


  • 900/868/433 MHz Operating Frequency
  • Sensitivity: 4096 count/g
  • Sensitivity Range: +/-2 G, +/-4 G, +/-8 G
  • Measurement Accuracy: +/-2.5 % (Force: X, Y, Z)
  • Minimum G Force to Turn On/Wake Up: 0.050 g - 0.100 g
  • Bandwidth for Data Measurement: 800 Hz
  • Measuring Range: 0° to 180° / -180° to -0° (Rotating in positive direction)
  • Resolution: 0.1°
  • Weight: 3.7 oz.
  • Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)
  • Supply Voltage: 2.0 - 3.8 VDC
  • Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)
  • Battery Life: Up to 10 Year Battery Life.**
  • Max Operating Temperature: -40° to 85°C (-40° to 185°F)
  • Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)
  • Solar Power Option:
    • - 3.0 VDC Solar Panel
    • - 600 mAH Rechargeable Battery (>2000 Charge Cycles - 80% of Initial Capacity)
    • - Charging Temperature Range: 0° to 45°C (32° to 113°F)
    • - Max Temperature Range: -20° to 60°C (-4° to 140°F)
  • Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure
  • UL Rating: UL Listed to UL508-4x specifications (File E194432)
  • Dimension: 3.7 in x 2.32 in x 1.38 in
  • Measures Pitch and Roll

* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
