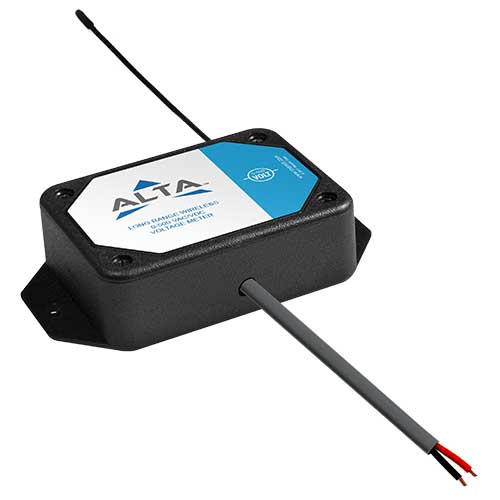

ALTA Wireless Voltage Meter - 500 VAC/VDC (AA)

ALTA wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 500 VAC/VDC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.
Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is really just a "voltage observer".

 ALTA Wireless Voltage Meter - 500 VAC/VDC (AA) - ALTA WIRELESS VOLTAGE METERS - 0-500 VAC/VDC, 900 MHz, AA BATTERY POWERED
Part No. Description Price Stock
MNS2-4-W2-VM-500 ALTA WIRELESS VOLTAGE METERS - 0-500 VAC/VDC, 433 MHz, AA BATTERY POWERED $189 ∗
MNS2-4-W2-VM-500-LP ALTA WIRELESS VOLTAGE METERS - 0-500 VAC/VDC, 433 MHz, Line Power w/Batt Backup & Switch $173 ∗
MNS2-4-W2-VM-500-SW ALTA WIRELESS VOLTAGE METERS - 0-500 VAC/VDC, 433 MHz, Standard AA w/Power Switch $137 ∗
MNS2-8-W2-VM-500 ALTA WIRELESS VOLTAGE METERS - 0-500 VAC/VDC, 868 MHz, AA BATTERY POWERED $179 ∗
MNS2-8-W2-VM-500-LP ALTA WIRELESS VOLTAGE METERS - 0-500 VAC/VDC, 868 MHz, Line Power w/Batt Backup & Switch $162 ∗
MNS2-8-W2-VM-500-SW ALTA WIRELESS VOLTAGE METERS - 0-500 VAC/VDC, 868 MHz, Standard AA w/Power Switch $126 ∗
MNS2-9-W2-VM-500 ALTA WIRELESS VOLTAGE METERS - 0-500 VAC/VDC, 900 MHz, AA BATTERY POWERED $179 ∗
MNS2-9-W2-VM-500-LP ALTA WIRELESS VOLTAGE METERS - 0-500 VAC/VDC, 900 MHz, Line Power w/Batt Backup & Switch $161 ∗
MNS2-9-W2-VM-500-SW ALTA WIRELESS VOLTAGE METERS - 0-500 VAC/VDC, 900 MHz, Standard AA w/Power Switch $125 ∗
MNS2-91-W2-VM-500 ALTA WIRELESS VOLTAGE METERS - 0-500 VAC/VDC, 920 MHz Korea, AA BATTERY POWERED $116 ∗
∗ Standard lead time is 1 week

ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 12+ years.
ALTA products employ Monnit's new Encrypt-RF® Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

The standard version of this sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase). This sensor is also available with a line power option. The line powered version of this sensor has a barrel power connector allowing it to be powered by a standard 3.0 - 3.8 V power supply (Included with Line Power option upgrade). The line powered version also uses two standard 1.5 V AA batteries as backup for uninterrupted operation in the event of line power outage.

Power options must be selected at time of purchase, as the internal hardware of the sensor must be changed to support the selected power requirements.

Packing List

  • Wireless Sensor
  • 2 x AA Batteries
  • Mounting Hardware

Features

  • 900/868/433 MHz Operating Frequency
  • Absolute Maximum Voltage: 600 VACrms / 850 VDC
  • Minimum Voltage Detected: -850 VDC
  • Accuracy: +/- (1 VACrms + 3% of reading)
  • Calibrated Accuracy with Appropriate Offset: +/- (.5 VACrms + 1.5% of reading)
  • Response Time: 40 ms
  • Supported Operation Modes: VACrms (root mean squared), Peak Voltage, DC Voltage
  • Resolution: .25 VACrms / .35 VDC/Peak Voltage
  • Lead Wire Length: 2 Wires, 1 ft (12 in), Black (Hot), White (Neutral), 18 AWG (Custom lengths available upon request.)
  • Weight: 4.0 oz.
  • Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
  • Battery Type: 2 Replaceable AA 1.5 V Batteries
  • Dimension: 4.375 in x 2.470 in x 1.12 in
  • Supply Voltage: 2.0 - 3.8 V (2 x AA 1.5V Batteries or Optional Power Supply)
  • Battery Life: At 1 hour heartbeat setting, included AA batteries will typically last 6-8 Years. **
  • Max Operating Temperature Using AA Alkaline: -18°C to 55°C (0°F to 130°F)
  • Max Operating Temperature Using AA Lithium: -40°C to 60°C (-40°F to 140°F)
  • Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)
  • Enclosure Material: ABS
  • Interfaces with devices and power supplies up to 500 VAC/VDC
  • Max sensor input voltage up to 600 volts (will return a max of 500 volts in software)

* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
