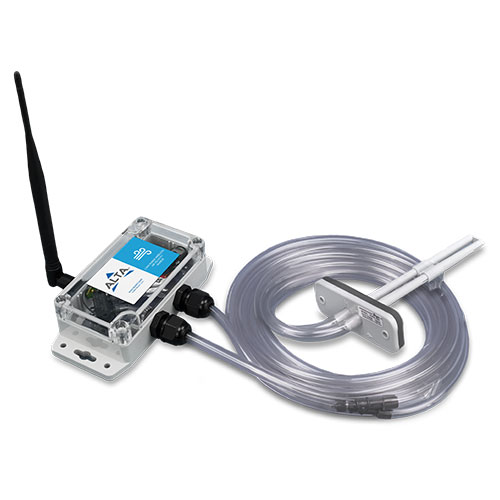

AlTA Industrial Wireless Air Speed Sensor

The ALTA wireless air speed sensor measures the pressure difference between two input ports, the temperature, and altitude determines the speed at which the air is moving in a system and transmits the measurement to iMonnit. The sensor measures the pressure difference between two ports. When viewing the sensor from the top, the right inlet port is the negative or low side pressure input. When the pressure on this port is greater than the left port the sensor produces a negative pressure reading. When the pressure is greater on the left port the sensor produces a positive pressure reading. Combined with the temperature and the altitude, the sensor determines at what rate the air is flowing in a system.

 AlTA Industrial Wireless Air Speed Sensor - ALTA INDUSTRIAL WIRELESS AIR VELOCITY / SPEED SENSOR, 900 MHz
Part No. Description Price Stock
MNS2-4-IN-PS-AV ALTA INDUSTRIAL WIRELESS AIR VELOCITY / SPEED SENSOR, 433 MHz $550 ∗
MNS2-8-IN-PS-AV ALTA INDUSTRIAL WIRELESS AIR VELOCITY / SPEED SENSOR, 868 MHz $540 ∗
MNS2-9-IN-PS-AV ALTA INDUSTRIAL WIRELESS AIR VELOCITY / SPEED SENSOR, 900 MHz $540 ∗
MNS2-9-IN-PS-AV-PA ALTA INDUSTRIAL WIRELESS AIR VELOCITY / SPEED SENSOR, 900 MHz, High Gain Leaded Puck $535 ∗
∗ Standard lead time is 1 week

ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 12+ years.
ALTA products employ Monnit's new Encrypt-RF® Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

Monnit ALTA Industrial Sensors come in an IP65, NEMA 4X, CE rated, sealed, and weatherproof enclosure. They are powered by a single, replaceable, Industrial grade 3.6 V battery (included).

An optional solar powered version is also available. The solar powered version includes a Lithium Iron Phosphate rechargeable battery in conjunction with a solar power cell to keep the battery charged and at optimal capacity. If there is no light present at the solar cell, the battery alone could continue to power the sensor for up to 8-10 years.

Packing List

  • Power Supply
  • USB Cable
  • Wireless Sensor
  • Mounting Hardware
  • 3V Industrial Battery (Pre-Installed)
  • SMA Antenna

Features

  • 900/868/433 MHz Operating Frequency
  • Pressure Range: -500 Pa to 500 Pa
  • Allowable Overpressure: 100 kPa
  • Rated Burst Pressure: 500 kPa
  • Max Humidity for Long-Term Exposure: 40°C dew point
  • Sensing Range: Range at 0 m Altitude: 0-30m/s
  • Range at 5000 m Altitude: 0-40m/s
  • Range at 8000 m Altitude: 0-50m/s
  • Span Repeatability: 0.5% of reading
  • Span Shift Due to Temperature Variation: < 0.5% of reading per 10°C
  • Offset Stability: < 0.05 Pa/year
  • Calibrated For: Air, N2
  • Media Compatibility: Air, N2, O2, non-condensing
  • Weight: 3.7 oz.
  • Security: Encrypt-RF® (Diffie-Hellman Key Exchange and AES-128 CBC)
  • Supply Voltage: 2.7 - 3.8 VDC (3.0 - 3.8 VDC using power supply)
  • Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)
  • Battery Life: Up to 10 Year Battery Life.**
  • Max Operating Temperature: -40° to 85°C (-40° to 185°F)
  • Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)
  • Solar Power Option:
    • - 3.0 VDC Solar Panel
    • - 600 mAH Rechargeable Battery (>2000 Charge Cycles - 80% of Initial Capacity)
    • - Charging Temperature Range: 0° to 45°C (32° to 113°F)
    • - Max Temperature Range: -20° to 60°C (-4° to 140°F)
  • Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure
  • UL Rating: UL Listed to UL508-4x specifications (File E194432)
  • Dimension: 3.7 in x 2.32 in x 1.38 in

* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
