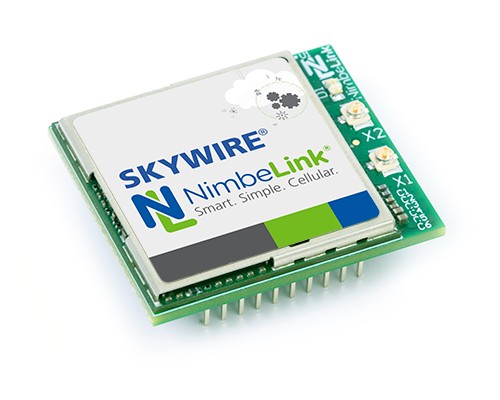

NL-SW-LTE-TC4NAG


NimbeLink, a global leader in embedded cellular modem technology and asset tracking solutions, has introduced the Skywire 4G LTE CAT 4 NA modem. This Skywire modem leverages Category 4 technology. The NL-SW-LTE-TC4NAG is ideal for delivering fast reliable cellular connectivity to products with applications in North America. The modem supports GNSS, dual SIMs, a single SKU for North American carrier networks, and onboard network stacks, plus is FirstNet capable and includes support for Band 14.

NL-SW-LTE-TC4NAG - Skywire Cellular Modem, LTE CAT 4, North America, GNSS
Part No. Description Price Stock
NL-SW-LTE-TC4NAG Skywire Cellular Modem, LTE CAT 4, North America, GNSS $120 180
NL-SW-LTE-TC4NAG-B NimbeLink Skywire LTE Cat 4 - VZW & AT&T $130 7121

The NL-SW-LTE-TC4NAG is pin compatible, designed to replace the NimbeLink CAT 3 modems, NL-SW-LTE-TNAG-X & NL-SW-LTE-TSVG-X, with a higher performance and lower cost product.

All Skywire modems are small, pin-compatible, and end-device certified, which enables easy integration with no further carrier testing requirements. This time-to-market advantage allows developers to quickly design-in connectivity to cellular networks around the world. All Skywire modems are patented and are backed by industry leading documentation and expert-level product support.

Features


  • Small Form-Factor
  • 4G LTE Category 4 with 3G fallback
  • U.FL Antenna ports for easy antenna integration
  • Removable SIM card slot
  • Band 14 support - FirstNet compatible
  • Dual SIM support with integrated solder down SIM and external 3FF SIM card slot
  • GNSS support for GPS, Glonass, Beidou, Galileo, and QZSS
  • Multi-Carrier Support on a Single Device
  • Development kits available
  • Longest Network Life
  • CAT 4 LTE Speeds (Up to 150 MB down/50 MB up)
  • Easily connect to Verizon, AT&T, or T-Mobile networks.
  • Improved reception with RX diversity
  • 8 Band LTE support
  • Integrated GNSS support
  • Bundled data plans available
  • Warranty Period: 1 year
