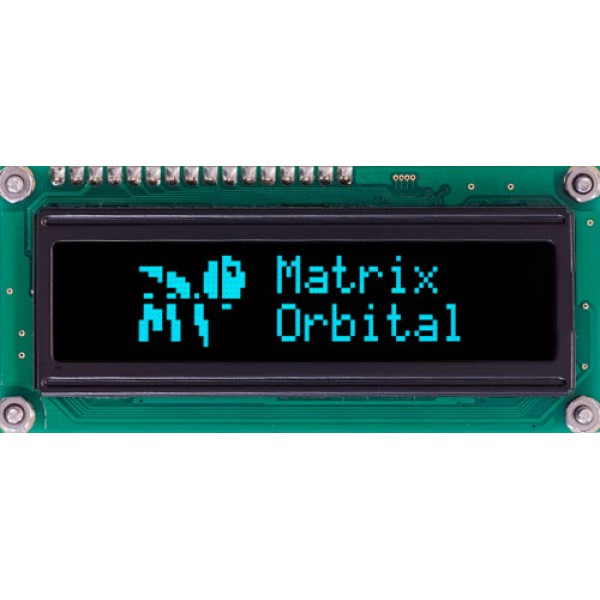

MOI-AO162A

The MOI-AO162A is an economy 16x2 intelligent I2C small oled display. Engineered to quickly and easily add a powerful HMI to any application.
Our Intelligent Character I2C OLED displays provides you with a cost-effective industrial HMI user interface solution for that great product/project you are developing. This I2C OLED displays features optional on-board medium digits, bar graphs and 3 GPOs will allow fast development for any application.

 MOI-AO162A - 16x2 OLED with I2C, 5V Power, 3 General Purpose Outputs, White Text
Part No. Description Price Stock
MOI-AO162A-OW 16x2 OLED with I2C, 5V Power, 3 General Purpose Outputs, White Text $40 ∗
MOI-AO162A-OY 16x2 OLED with I2C, 5V Power, 3 General Purpose Outputs, Yellow Text $40 ∗
∗ Standard lead time is 1 week

Specification

Module
Family/Series Economy Display
Module Width (mm) 80
Module Height (mm) 36
Module Thickness (mm) 23.97
Screen
Text Color Blue, Green, Red, White, Yellow
Background Color Black
Display Type Character OLED
Display Mode Transmissive
Backlight Type None
Diagonal Screen Size (in) 2.3
Viewing Area Width (mm) 66
Viewing Area Height (mm) 16
Active Area Width (mm) 56.95
Active Area Height (mm) 11.85
Resolution Width (Pixels) 80
Resolution Height (Pixels) 16
Pixel Pitch Width (mm) 0.6
Pixel Pitch Height (mm) 0.7
Pixel Width (mm) 0.55
Pixel Height (mm) 0.65
Character Columns 16
Character Rows 2
Character Pitch Width (mm) 3.6
Character Pitch Height (mm) 6.3
Character Width (mm) 2.95
Character Height (mm) 5.55
Font Japanese, European
Viewing Direction Any
Viewing Angle 160
HMI
Touchscreen None
Keypad None
Keys None
Haptic Feedback None
Audio Feedback None
GPO's 3
Advanced GPO's None
Electrical
Interface I2C

Features

  • 16x2 Intelligent I2C OLED
  • Available Interfaces: I2C
  • Communication speed of 100Kbps
  • 5V voltage
  • 3 General Purpose Outputs
  • Built in Horizontal or Vertical bar graphs
  • Temperature of 0°C to 50°C
  • Fast and easy development
  • Designed, supported and Made in CANADA
  • Long life cycle
  • Semi-custom designs available
  • Backed my Matrix Orbital`s decades of research and development
  • The MOI I2C LCD/VFD/OLED display is a perfect pairing for an Arduino, allowing easy and fast development with a display
