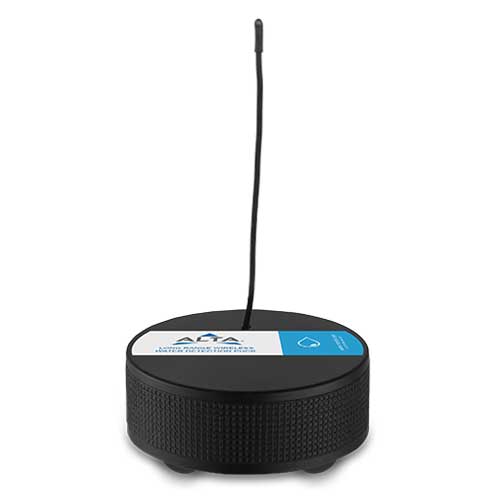

ALTA Wireless Water Detection Puck Sensor

The ALTA Wireless Water Detection Puck Sensor detects when water is present by completing the circuit between the two probe points on the bottom of the puck sensor. When water is present the sensor will immediately turn on the RF radio and transmit the data to the wireless gateway and iMonnit Online Sensor Monitoring and Notification System, allowing the user to immediately receive an SMS text or email alert. The sensor can be configured to detect both the presence and non-presence of water.

 ALTA Wireless Water Detection Puck Sensor - ALTA WIRELESS WATER DETECTION PUCK SENSOR, 900 MHz
Part No. Description Price Stock
MNS2-4-PK-WS-PS ALTA WIRELESS WATER DETECTION PUCK SENSOR, 433 MHz $159 ∗
MNS2-8-PK-WS-PS ALTA WIRELESS WATER DETECTION PUCK SENSOR, 868 MHz $149 ∗
MNS2-9-PK-WS-PS ALTA WIRELESS WATER DETECTION PUCK SENSOR, 900 MHz $149 ∗
∗ Standard lead time is 1 week

ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 12+ years.
ALTA products employ Monnit's new Encrypt-RF® Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

Packing List

  • Wireless Sensor

Features

  • 900/868/433 MHz Operating Frequency
  • Dimension: 3.0 inch x 1.0 inch
  • Battery Type: 3.6V 1200 mAh Lithium (non-replaceable)
  • Battery Life: 12+ years
  • Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)
  • Dimension: 3.0 in x 3.0 in x 1.0 in
  • Max Operating Temperature: -18°C to 55°C (0°F to 130°F)
  • Weight: 7.6 oz.

* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
