2JF0415P-010MC137-C603NST


A very compact high-efficiency flexible Dual Band ISM PCB antenna

2JF0415P-010MC137-C603NST - 2J Antennas Strip Antenna - Flexible, Adhesive - Black - 100x1.37mm Cable - 868/915 MHz (RP SMA M)
Part No. Description Price Stock
2JF0415P-010MC137-C603NST 2J Antennas Strip Antenna - Flexible, Adhesive - Black - 100x1.37mm Cable - 868/915 MHz (RP SMA M) $7 107

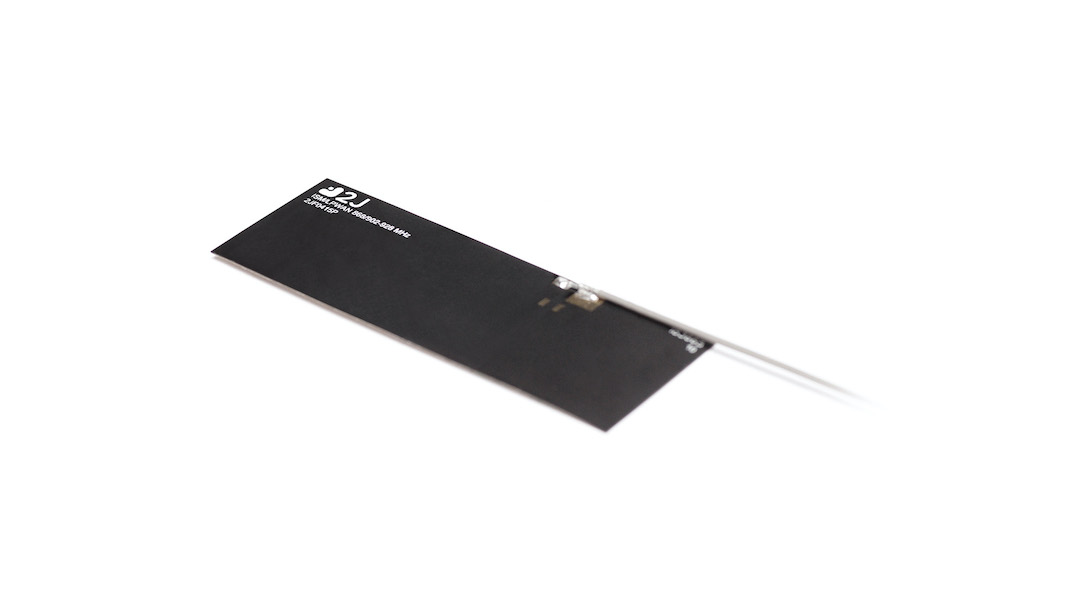

At only 0.2mm thick, the 2JF0415P is an ultra-thin, high efficiency, flexible PCB antenna that has been designed for NB-IoT applications where device available space is at a premium. Integrating an omnidirectional design, this antenna provides a 360° coverage for all implementations where a dedicated frequency is needed.
Utilizing 868MHz ISM for European standards and 915MHz ISM frequencies for the US market, this flexible embedded antenna is ideal for applications such as M2M, smart metering devices, precision agriculture management, remote keyless systems, optical connectivity solutions, underwater sensors, smart healthcare, and fitness monitoring devices, etc.

Features


  • Dual Band 868/915 MHz ISM Antenna
  • Self-Adhesive
  • Flexible Material
  • High Performance
  • Embedded Antenna
  • Ground Plane Independent
  • Customizable Cable and Connector
  • Dimensions: 2.50cm × 7.00cm × 0.02cm (0.98in × 2.76in × 0.01in)
  • Operating Temperature: -40°C to 85°C
  • Warranty Period: 3 years
