2JM1901GF

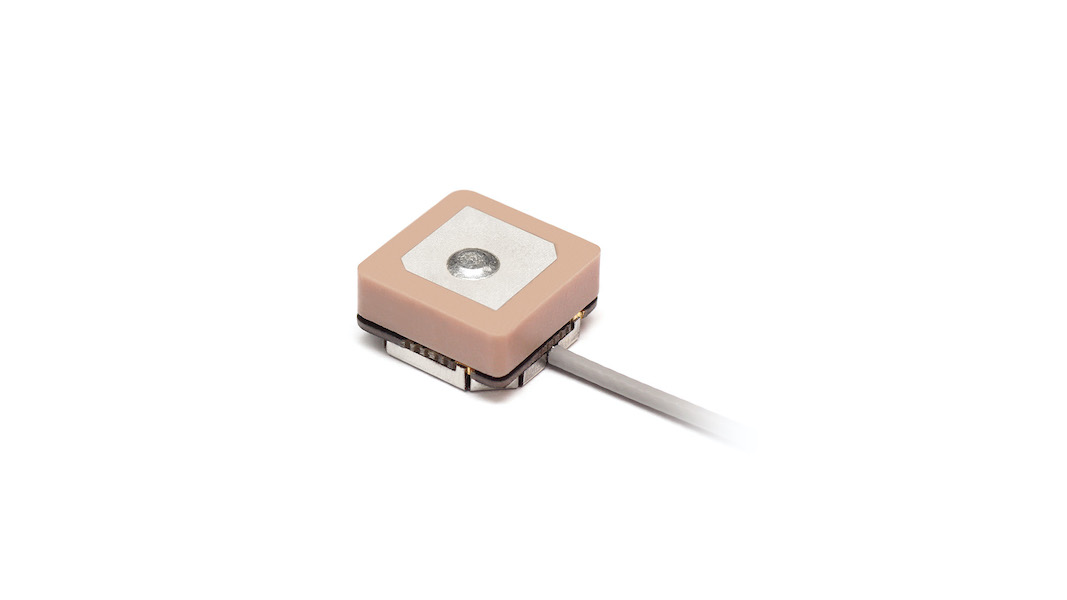

GPS/GLONASS/Galileo Pre-Filter 28 dB Gain Low Noise Embedded Antenna
|
 |
| Part No. |
Description |
Price |
Stock |
|
| 2JM1901GF-007MC137-UFL |
2J Antennas Ceramic Active Antenna, Snap-in - 70x1.37mm Cable - GNSS (U.FL) |
$11
|
∗ |
|
| 2JM1901GF-010MC137-UFL |
2J Antennas Ceramic Active Antenna, Snap-in - 100x1.37mm Cable - GNSS (U.FL) |
$11
|
10 |
|
∗ Standard lead time is 1 week
Features
- GPS/GLONASS/QZSS/Galileo
- 28 dB GNSS Active Gain
- Pre-Filter GNSS
- Low Noise Figure
- Low Power Consumption
- Voltage Range 1.5 - 3.6 V
- Frequency: 1575.42, 1598-1606
- Small Form Factor
- Ground Plane Independent
- Dimensions: 1.30cm × 1.30cm × 0.66cm (0.51in × 0.51in × 0.26in)
- Operating Temperature: -40°C to 85°C
- Warranty Period: 3 years
