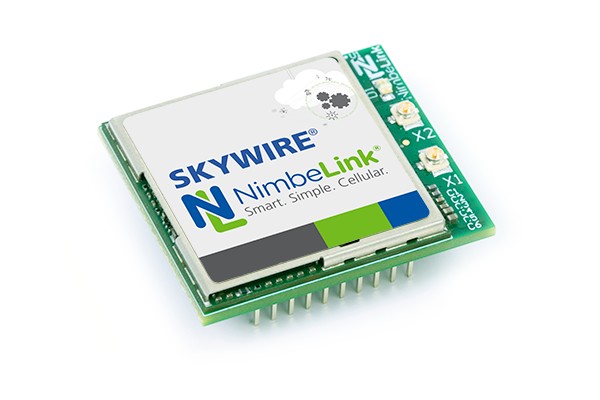

NL-SW-LTE-TC1NAG


NimbeLink, a global leader in embedded cellular modem technology and asset tracking solutions, has introduced the Skywire® 4G LTE CAT 1 NA modem. This Skywire modem leverages Category 1 technology. The NL-SW-LTE-TC1NAG is ideal for delivering fast reliable cellular connectivity to products with applications in North America. The modem supports GNSS, dual SIMs, a single SKU for both AT&T / Verizon networks, integrated TCP/IP stacks, plus is AT&T's FirstNet (Band 14) capable.
The NL-SW-LTE-TC1NAG is pin compatible with NimbeLink CAT 3 modems, NL-SW-LTE-TNAG-X & NL-SW-LTE-TSVG-X, and the CAT 4 NL-SW-LTE-TC4NAG. This modem is ideal for applications requiring lower throughput than CAT 3 and CAT 4 modems, with the added benefit of a lower cost product and dual-carrier firmware (also supported by NL-SW-LTE-TC4NAG).

NL-SW-LTE-TC1NAG - Skywire Cellular Modem, LTE CAT 1, North America, GNSS
Part No. Description Price Stock
NL-SW-LTE-TC1NAG Skywire Cellular Modem, LTE CAT 1, North America, GNSS $111 753
NL-SW-LTE-TC1NAG-B Skywire Cellular Modem, LTE CAT 1, North America, GNSS $111
∗ Standard lead time is 1 week

Skywire embedded modems dramatically reduce the cost, risks and timelines of IoT product development. With known-good RF engineering and fully validated software, Skywire allows you to focus on your application and not engineering cellular radios. Standardized connectivity gives you flexibility to update and alternate radios for new geographies, carriers and technologies. Further, our embedded modems are "End-Device Certified", meaning your end-product will not need to go through the complex process of carrier certification. This is critical for the first release of your product and each iteration as you obtain market feedback. Skywire modems significantly reduce time-to-market and are ideal for product development through large-scale production. All Skywire modems are patented and backed by industry leading documentation and expert-level product support.

Features


  • Skywire Form-Factor
  • 4G LTE Category 1 with 3G fallback
  • All RF Engineering contained within the modem
  • Carrier End-Device certified
  • U.FL port for flexible antenna options
  • Band 14 support – FirstNet compatible
  • Dual SIM support with integrated solder down SIM and external 3FF SIM card slot
  • Direct module access via Serial UART or USB
  • GNSS support for GPS, Glonass, Beidou, Galileo, and QZSS
  • Multi-Carrier Support on a Single Device
  • Skywire family pin compatability
  • Development kits available
  • Longest Network Life
  • CAT 1 LTE Speeds (Up to 10 Mb down/5 Mb up)
  • Easily connect to Verizon and AT&T networks.
  • Improved reception with RX diversity
  • 8 Band LTE support
  • Integrated GNSS support
  • Bundled data plans available
  • Throughput: 10 Mbps Download/5 Mbps Upload
  • Supply Voltage: 3.4V - 4.2V (3.8V Nominal)
  • I/O Voltage: 1.65V-5.5V
  • Temperature Range: -40°C to +85°C
  • Dimensions: 29mm x 33mm x 10.5mm
  • Weight: 8 grams
  • RoHS Compliant
  • Warranty Period: 1 year
