NL-SW-LTE-TG1WWG

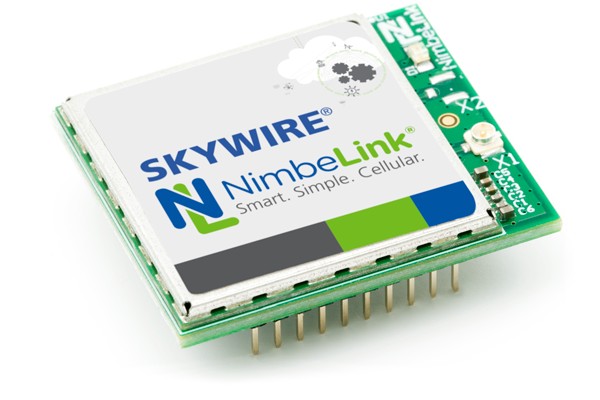

NimbeLink, a global leader in embedded cellular modem technology and asset tracking solutions, has introduced the Skywire NL-SW-LTE-TG1WWG modem. This new Skywire modem offers LTE-M (CAT M1) and NB-IoT (NB1, NB2) connectivity for global applications with fallback to 2G. The modem also includes an integrated GPS/GNSS radio. The NL-SW-LTE-TG1WWG is compatible with many of the world's LTE-M and NB-IoT networks.

NL-SW-LTE-TG1WWG - SkyWire LTE-M global embedded modem, NB1, NB2, 2G fallback, with GNSS
Part No. Description Price Stock
NL-SW-LTE-TG1WWG SkyWire LTE-M global embedded modem, NB1, NB2, 2G fallback, with GNSS $63 245

Skywire embedded modems dramatically reduce the cost, risks and timelines of IoT product development. With known-good RF engineering and fully validated software, Skywire allows you to focus on your application and not engineering cellular radios. Standardized connectivity gives you flexibility to update and alternate radios for new geographies, carriers and technologies. Further, our embedded modems are "End-Device Certified", meaning your end-product will not need to go through the complex process of carrier certification. This is critical for the first release of your product and each iteration as you obtain market feedback. Skywire modems significantly reduce time-to-market and are ideal for product development through large-scale production. All Skywire modems are patented and backed by industry leading documentation and expert-level product support.

Features


  • Skywire Form-Factor
  • Global 4G LTE-M, NB-IoT with 2G fallback
  • All RF Engineering contained within the modem
  • Carrier End-Device certified
  • GNSS receiver for GPS, GLONASS, Beidou/Compass, Galileo, and QZSS
  • Solder down SIM onboard and removable SIM card slot
  • U.FL port for antenna flexibility
  • Direct module access via Serial UART or USB
  • Multi-Carrier Support on a Single Device
  • Skywire family pin compatability
  • Development kits available
  • Global LTE-M, NB-IoT, and 2G coverage in a single modem
  • Lower power & lower cost than LTE Cat 1-4 and 3G technologies
  • Pricing comparable to other LPWAN technologies
  • Easy to integrate - pin compatible with all Skywire modems
  • Bundled data plans available
  • Throughput: LTE-M 588 Kbps Download/1 Mbps Upload | NB-IoT 3120 Kbps Download/160 Kbps Upload | EGPRS 264 Kbps Download/ 210 Kbps upload
  • Input Voltage: 3.4V-4.2V
  • I/O Voltage: 1.65V-5.5V
  • Temperature Range: -40°C to +85°C
  • Dimensions: 29mm x 33mm x 10.5mm
  • RoHS Compliant
  • Operating Temperature: -40°C to 85°C
  • Warranty Period: 1 year
