NL-SW-LTE-SRC7611-4


The Skywire® 4G LTE CAT 4 embedded modem is ideal for delivering fast, reliable cellular connectivity for products in North America. The modem supports GNSS, dual SIMs, a single SKU for North American carrier networks and onboard network stacks.

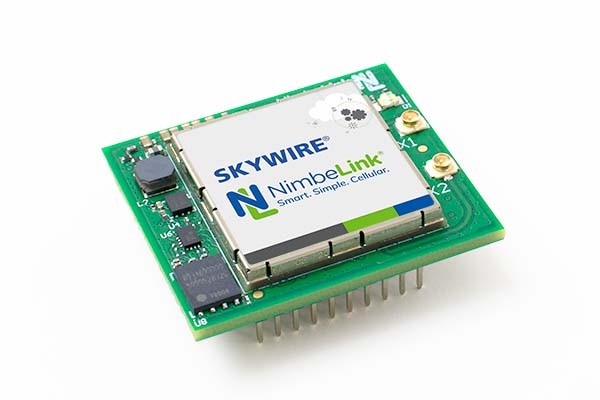

NL-SW-LTE-SRC7611-4 - Skywire Cellular Modem LTE CAT 4, North America, GNSS
Part No. Description Price Stock
NL-SW-LTE-SRC7611-4 Skywire Cellular Modem LTE CAT 4, North America, GNSS $120 1
NL-SW-LTE-SRC7611-4NG Skywire Cellular Modem LTE CAT 4, AT&T, North America $120 1
NL-SW-LTE-SRC7611-4NGV Skywire Cellular Modem LTE CAT 4, Verizon, USA Only $120 49

Skywire embedded modems dramatically reduce the cost, risks and timelines of IoT product development. With known-good RF engineering and fully validated software, Skywire allows you to focus on your application and not engineering cellular radios. Standardized connectivity gives you flexibility to update and alternate radios for new geographies, carriers and technologies. Further, our embedded modems are "End-Device Certified", meaning your end-product will not need to go through the complex process of carrier certification. This is critical for the first release of your product and each iteration as you obtain market feedback. Skywire modems significantly reduce time-to-market and are ideal for product development through large-scale production. All Skywire modems are patented and backed by industry leading documentation and expert-level product support.

Features


  • Skywire Form-Factor
  • All RF Engineering contained within the modem
  • Carrier End-Device certified
  • U.FL port for flexible antenna options
  • Band 14 support – FirstNet ready
  • Dual SIM support with integrated solder down SIM and external 3FF SIM card slot
  • Direct module access via Serial UART or USB
  • GNSS support for GPS, Glonass, Beidou, Galileo, and QZSS
  • Multi-Carrier Support on a Single Device
  • Skywire family pin compatibility
  • RoHS compliant
  • Development kits available
  • CAT 4 LTE Speeds (Up to 150 MB down/50 MB up)
  • Easily connect to AT&T, Bell, Rogers, Telus, Verizon
  • Improved reception with RX diversity
  • 10 Band LTE support
  • Integrated GNSS support
  • Data plans available
  • Throughput: 150 Mbps Download/50 Mbps Upload
  • Supply Voltage: 3.0V to 5.5V
  • I/O Voltage: 1.65V-5.5V
  • Temperature Range: -40°C to +85°C
  • Dimensions: 29mm x 33mm x 10.5mm
  • Weight: 8 grams
  • Warranty Period: 1 year
