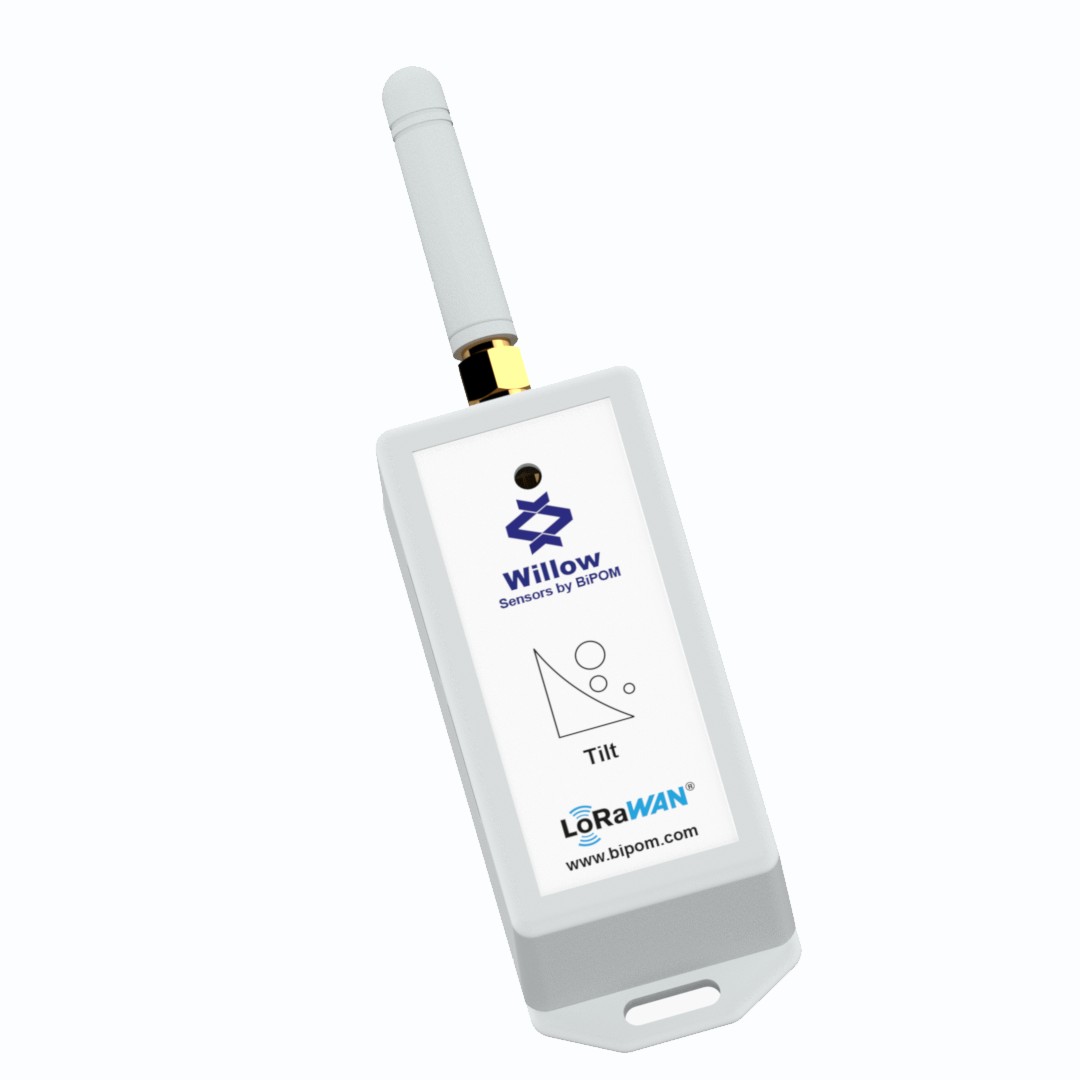

Indoor Tilt Sensor Based on BiPOM's WillowBee LoRaWAN module, the sensor is compatible with LoRaWAN and has an ultra-long-range and ultra-long battery life. The sensor can read 3-axis movement values and send them to the LoRaWAN gateway. If the sensor moves then, the sensor can detect the acceleation in X, Y and Z axis. 3D ModelDocumentsGatewaysSoftware

Specifications

• 868/915 MHz LoRaWAN protocol
• Up to 15 km communications distance
• Up to 5 years of battery life
• Low power consumption; sleep current 1.5uA
• Customizable instant status notification
• Wall mountable enclosure
• LoRaWAN Downlink Support
• The sensor reports 5 parameters:
  • Accelaration in X axis
  • Accelaration in Y axis
  • Accelaration in Z axis
  • Temperature of the sensor
  • Battery level
• All data can be visualizing easily on the cloud
• Uses STM32WL processor based on Semtech SX1262
