NL-SW-LTE-TC4WWG


NimbeLink, a global leader in embedded cellular modem technology and asset tracking solutions, has introduced the Skywire® 4G LTE CAT 4 WW modems. This Skywire modem leverages Category 4technology. The NL-SW-LTE-TCxWWG family is ideal for delivering fast reliable cellular connectivity to products with applications worldwide.The modem supports GNSS, dual SIMs, a single SKU for both AT&T and Verizon networks, integrated TCP/IP stacks, and is AT&T's FirstNet (Band 14) capable.

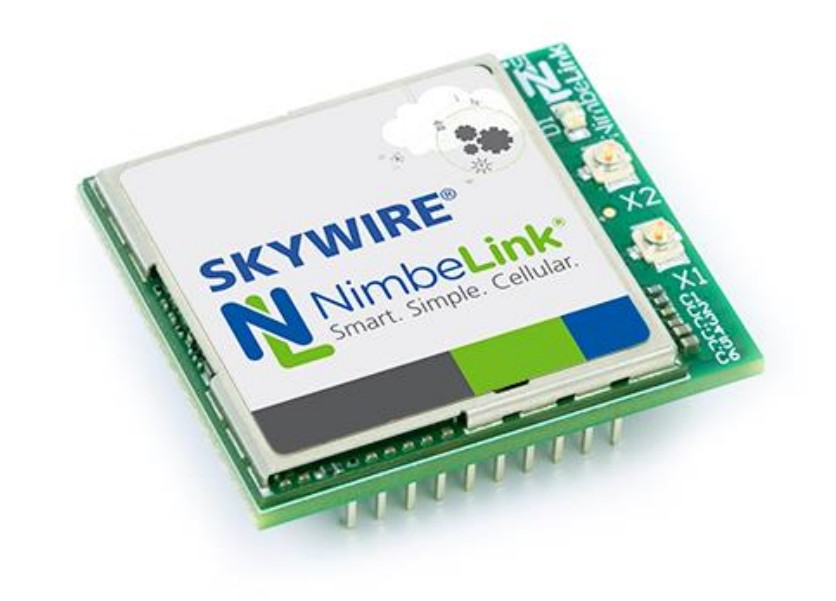

NL-SW-LTE-TC4WWG - Skywire 4G LTE Cat 4 WW Embedded Cellular Modem.
Part No. Description Price Stock
NL-SW-LTE-TC4WWG Skywire 4G LTE Cat 4 WW Embedded Cellular Modem. $138 65

Skywire embedded modems dramatically reduce the cost, risks and timelines of IoT product development. With known-good RF engineering and fully validated software, Skywire allows you to focus on your application and not engineering cellular radios. Standardized connectivity gives you flexibility to update and alternate radios for new geographies, carriers and technologies. Further, our embedded modems are "End-Device Certified", meaning your end-product will not need to go through the complex process of carrier certification. This is critical for the first release of your product and each iteration as you obtain market feedback. Skywire modems significantly reduce time-to-market and are ideal for product development through large-scale production. All Skywire modems are patented and backed by industry leading documentation and expert-level product support.

Features


  • Small Skywire Form-Factor
  • 4G LTE Category 4 with 3G fallback
  • U.FL Antenna ports for easy antenna integration
  • Band 14 support – FirstNet on AT&T’s network
  • Dual SIM support with integrated solder down SIM and external 3FF SIM card slot
  • GNSS support for GPS, Glonass, Beidou, Galileo, and QZSS
  • Multi-carrier support on a single device
  • Skywire family pin compatability
  • Temperature Range: -40°C to +85°C
  • Dimensions: 29.85mm x 34.4mm x 10.5mm
  • RoHS Compliant
  • Development kits available
  • Operating Temperature: -40°C to 85°C
  • Warranty Period: 1 year
