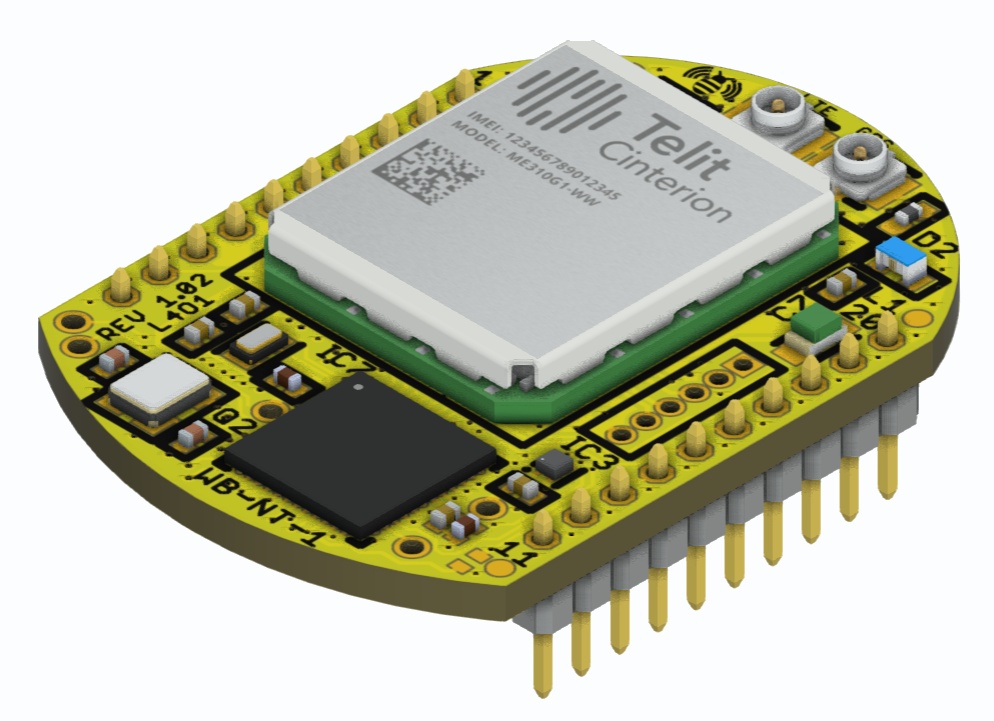

WillowBee Telit for LTE-M1/NB-IoTWB-NT-1 is an industrial LTE CAT M1/NB2 module designed for IoT applications and has optimized power consumption with enhanced quality of coverage.
|
 |
| Part No. | Description | Price | Stock | |
|---|---|---|---|---|
| WB-NT-1 | WillowBee Telit CAT-M1/NB-IoT module with uFL antenna connector | $69 | ∗ |
∗ Standard lead time is 1 week
WB-NT-1 is pin compatible with other popular wireless devices and has fully backed by a 3-year warranty, technical support and application assistance from BiPOM Electronics, Inc.
Features
- ME310G1-WW worldwide module
- Both LTE-M1 and NB-IoT (NB2) support
- Low Power for battery operation
- Configurable power output
- Compliant with 3GPP Release 14
- Maximum output power: 21 dBm
- 4G Bands: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B71, B85. All major worldwide carriers.
- FirstNet support on LTE-M
- GNSS (GPS, GLONASS, Beidou, Galileo)
- STM32G0B1CEU6N Cortex M0+ core
- Low Power for battery operation
- 144 KB of RAM and 512 KB of Flash memory available to user applications
- Flash memory with protection and securable area
- 12-bit analog inputs, external reference option
- Pin compatible with popular modules
- u.FL Connectors for cellular and GNSS
- RF Shield
- Dual Power option: Battery or DC Power
- 3.5V to 5.5V supply voltage range
- Temperature Range: -40°C to +85°C
- Dimensions 1.36" x 0.96" x 0.36" (34.54 mm x 24.38 mm x 9.14 mm)
- 2-MB Serial Flash
- Configurable 15 I/O Pins
- ADC, SPI, UART, I2C interfaces
- Warranty Period: 1 year
