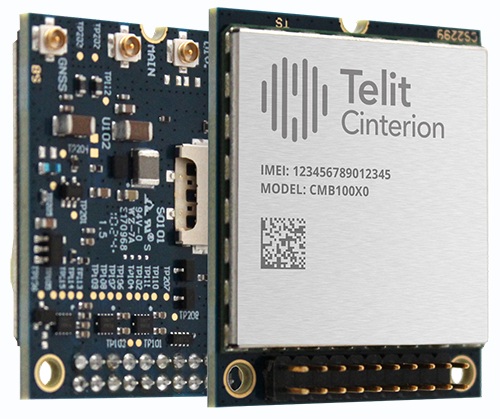

CMB100

The CMB100 series is Telit Cinterion's first generation of LTE modules certified for end devices.
These modules provide the ability to add reliable LTE connectivity to products while reducing Development costs, Certification costs, LTE product development risks, Respins and recertifications for radio changes, and Time to market.

 CMB100 - Telit CMB100M, CAT M1
Part No. Description Price Stock
CMB100 Adapter Board-CMB to Skywire $11 1499
CMB100A0WW101B0200 Telit CMB1004, CAT 4 $91 3017
CMB100B0WW101B0100 Telit CMB1001 (LTE CAT-1bis) NO GNSS $76 ∗
CMB100B0WW401B0100 Telit CMB1001 (LTE CAT-1bis) No GNSS - PCBcs2341 $76 1567
CMB100B0WW501B0100 Telit CMB1001 (LTE CAT-1bis) No GNSS - PCBcs2341c $76 2240
CMB100B1WW101B0100 Telit CMB1001 (LTE CAT-1bis) with GNSS $79 ∗
CMB100B1WW401B0100 Telit CMB1001 (LTE CAT-1bis) with GNSS $79 3032
CMB100B1WW501B0100 Telit CMB1001 (LTE CAT-1bis) with GNSS - PCBcs2341c $79 2535
CMB100C0WW101B0200 Telit CMB100M, CAT M1 $58 7425
CMB100D0WW101B0100 Telit CMB100D0 (5G RedCap LTE FB) $196 5094
∗ Standard lead time is 1 week

Features

  • Standard mini berg connector with 20 mm pitch
  • Best-in-class 3GPP Release (Rel) 10 platform
  • Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user-definable GPIOs
  • Wide power supply support range (1.8 V* to 5.5 V)
  • Battery-friendly 8 V GPIO
  • GPIO level translation for 3 V system
  • Ideal platform for IoT applications, mobile data and ultracompact computing devices with extended operating temperature range
  • Internet-friendly with integrated TCP/IP and UDP/IP stacks
  • Firmware over-the-air (FOTA) updates
  • FCC/IC and RED certified and device certified with major carriers
  • 2G and 3G fallback and GNSS for accurate location services
  • Warranty Period: 1 year
