2J6984BGFa

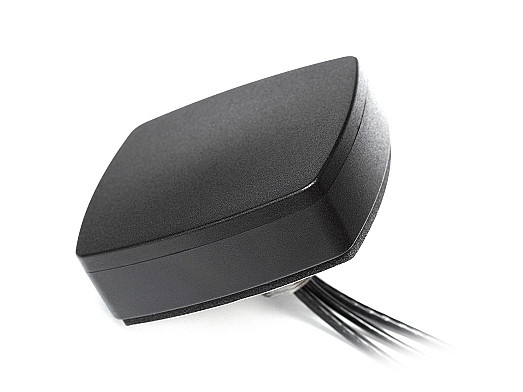

Phoenix 5GNR/4G LTE/3G/2G MIMO and GPS/GLONASS Screw Mount Antenna
|
 |
| Part No. |
Description |
Price |
Stock |
|
| 2J6984BGFa-030D302-C899GRST_C899GRST_030LL100-C20GBST_CU017489 |
2J Antennas - 3in1 Phoenix Antenna - 5G, Screw Mount - Black - 30cm D302 Cables - 2 LTE (SMA M) - 1 GNSS (SMA M) |
$58
|
∗ |
|
| 2J6984BGFa-032D302-C899GRST_C899GRST_032LL100-C20GBST_CU017489 |
Black, ScrewMount, 5G-1: 32cm D302, SMA-Male-Gold +Red Shrink Tube, 5G-2: 32cm D302, SMA-Male-Gold + Red Shrink Tube,GPS/GLO: 32cm LL100, SMA-Male-Gold + Blue Shrink Tube |
$49
|
∗ |
|
| 2J6984BGFa-100D302-C899GRST_C899GRST_100D100-C20GBST |
2J Antennas - 3in1 Phoenix Antenna - 5G, Screw Mount - Black - 1M D302 Cables - 2 LTE (SMA M) - 1 GNSS (SMA M) |
$58
|
14 |
|
| 2J6984BGFa-200D302-C899GRST_C899GRST_200D100-C20GBST |
2J Antennas Phoenix Puck Antenna - 5G, Screw Mount - Black - 2M D302 Cables - 2 LTE (SMA M) - 1 GNSS (SMA M) |
$72
|
∗ |
|
| 2J6984BGFa-525D302-C899GRST_C899GRST_525D100-C20GBST |
2J Antennas Phoenix Puck Antenna - 5G, Screw Mount - Black - 525cm D302 Cables - 2 LTE (SMA M) - 1 GNSS (SMA M) |
$97
|
∗ |
|
∗ Standard lead time is 1 week
Features
- 3-in-1 Combination Antenna
- Ultra Wide band Antenna
- 617-5925 MHz Sub 6GHz Bands
- Full 4GLTE backward compatibility
- Ground Plane Independent
- 5.1 dBi 5G NR Peak Gain
- Active GNSS Antenna
- 28 dB GNSS Active Gain
- Pre-Filter GNSS
- GNSS Voltage Range 1.5 - 3.6 V
- Low Profile
- Anti-Rotation Mounting
- Customizable Cable and Connector
- Dimensions: 8.00cm × 7.40cm × 2.56cm (3.15in × 2.91in × 1.01in)
- Warranty Period: 1 year
