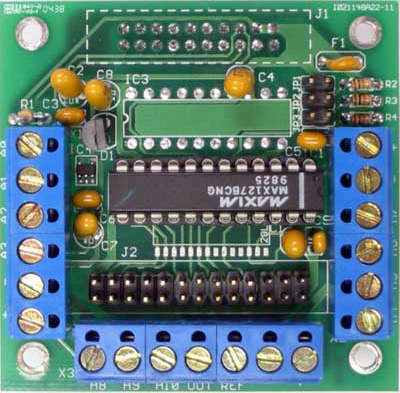

BRD-MMP-DAQ-127

8-channel, 12-bit analog inputs and 1 channel, 10-bit analog output board. DAQ-127 has +/- 10 Volt input range
Ideal for Internet of Things (IoT) applications.

 BRD-MMP-DAQ-127 - 8-channel, 12-bit, +/-10V Analog Inputs and 1 channel, 10-bit Analog Output peripheral board
Part No. Description Price Stock
BRD-MMP-DAQ-127 8-channel, 12-bit, +/-10V Analog Inputs and 1 channel, 10-bit Analog Output peripheral board $79 ∗
∗ Standard lead time is 1 week

Features

  • 12-bit ADC, 8 channels, 4.096V reference
  • Software configurable ±10V, ±5V, 0 to 10V, 0 to 5V ranges
  • I2C Interface
  • Fault on one channel does not effect other channels
  • 10 microsecond conversion time
  • Analog input/output terminal blocks
  • 10-bit DAC, 1 channel
  • Resettable fuse
  • Up to 8 boards can be cascaded for up to 64 12-bit analog inputs and 8 analog outputs
  • Warranty Period: 3 years
