BRD-USBXB-1


It is the most easiest and reliable way to connect the XBee module to a PC via USB port with included USB A to mini-B cable. It can be used as a communication point or a programmer for XBee module using X-CTU software. There are six LEDs on this board to help you monitoring and quickly troubleshooting.
Ideal for Internet of Things (IoT) applications.

NOTE: XBee module is NOT included

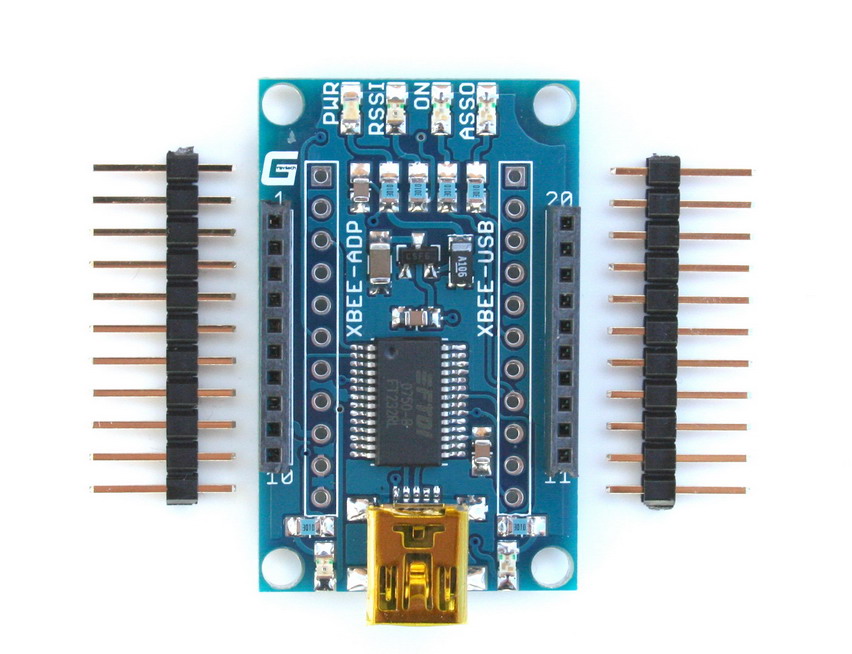

BRD-USBXB-1 - This board allows to connect the Xbee module to a PC via USB port
Part No. Description Price Stock
BRD-USBXB-1 This board allows to connect the Xbee module to a PC via USB port $28
∗ Standard lead time is 1 week

Features


  • Works with all XBee modules including the Series 1, Series 2, and Series 2.5; standard and Pro
  • No external power needed
  • Supports USB 1.0 and 2.0
  • Low USB bandwidth consumption
  • 256/128 bytes receive/transmit buffer
  • 0.1" spacing (breadboard friendly)
  • On-board 3.3V 250mA voltage regulator (can be use to power external devices)
  • TX and RX communication LEDs
  • PWR, RSSI, ON, and ASSOCIATE LEDs
  • Accessibility to every Xbee pin
  • Works with X-CTU software from Digi Int.
  • Supports Windows 98, 98SE, ME, 2000, Server 2003, XP, Vista. Mac OS8/9, OS-X and Linux 2.4 and greater
