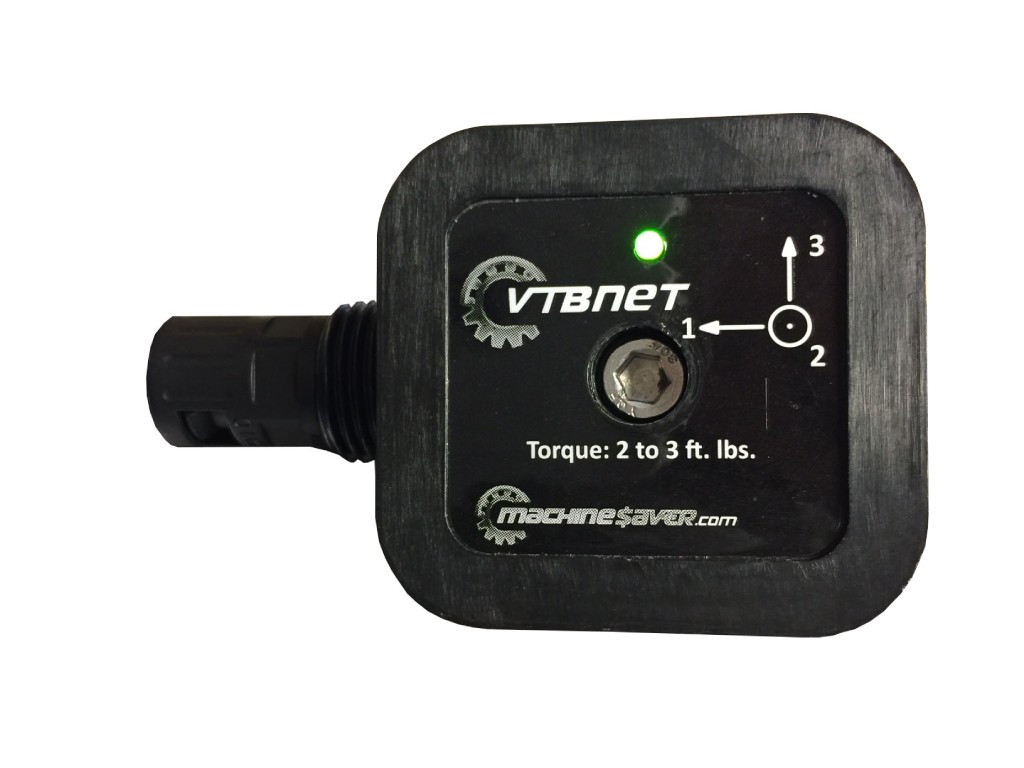

VTB-Sensor Intelligent, Digital, 3-Axis Sensor


VTB (Vibration, Temperature, Bearing) Sensors for machine protection are marketed worldwide under Machine Saver brand.

VTB-Sensor Intelligent, Digital, 3-Axis Sensor - VTB TriVibe sensor
Part No. Description Price Stock
VTB-SENSOR VTB TriVibe sensor $724
∗ Standard lead time is 1 week

Features


  • 3 (X, Y, Z) axis high frequency vibration sensors
  • 3 (X, Y, Z) axis low frequency vibration sensors
  • 1 RTD temperature sensor
  • Smart addressable microprocessor for onboard signal conditioning
  • Outputs in acceleration, velocity, displacement or impact to detect looseness
  • User-defined dynamic signal "snapshot" for condition monitoring
  • Programmable filters (high, low and band-pass)
  • Automatic calibration verification, diagnostics
  • Universal mounting, any axis any orientation
  • Multi-color sensor status LED
  • Wide operating temperature range -40°C to +105°C
  • Frequency response: 0.4 Hz to 1,000Hz (standard), .04Hz to 5,000 Hz (option)
  • Small compact enclosure 2.0" X 2.0" X 1.25" (51mm X 51mm X 32mm)
  • 1/4 - 28 UNF mounting studs, 1/2"NPT flex conduit connection ready
  • NEMA4X / IP65, CSA, cUL, IECEx (pending) Class 1 Div. 2 certified
  • Warranty Period: 3 years
