BRD-mPCIe-X

The BRD-mPCIe-X full size mini PCI express adapter board adds cellular connectivity to any device with a mini-PCIe slot: Embedded PCs, laptops, industrial tablets or custom PC boards, without the cost and delay of obtaining FCC and carrier certifications. The adapter board accepts all the NimbeLink NL-SW series certified Skywire™ cellular modems (except the NL-SW-HSPA).

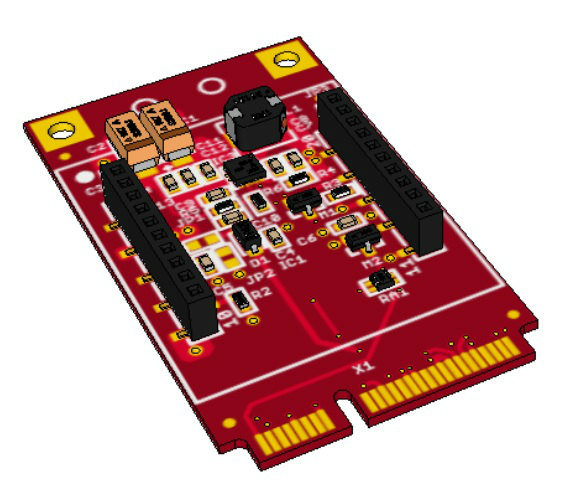

 BRD-mPCIe-X - Mini PCI express cellular modem adapter board
Part No. Description Price Stock
BRD-mPCIe-X Mini PCI express cellular modem adapter board $32 714

BRD-mPCIe-X is fully backed by a 3-year warranty, technical supportand application assistance from BiPOM Electronics, Inc.

Advantages

  • Fast incorporation of Verizon, AT&T, T-Mobile and other cellular access without certification cost
  • Eliminates the need for chip-down modem development
  • Allows compact device layout
  • Requires no software development on Linux and just addition of a USB driver on Windows

Specifications

  • Works with all NL-SW series modems, except NL-SW-HSPA
  • Supply voltage: 3.3V from miniPCIe
  • Active call current: 720mA - 1.5A
  • Normal current: 29mA
  • Power saving current: 1mA
  • Temperature range: -40°C to +85°C
  • Communication Method: USB

Target Applications

  • Kiosks
  • Digital signage
  • Security panels
  • Surveillance equipment
  • Control panels

Features

  • Compact size fits directly onto boards with full size mini-PCIe slots
  • Plug-and-play operation with Linux, Windows 7,8,10, and Embedded
  • Customer can use any antenna without requiring re-certification
  • Gold plated RoHS board
  • Warranty Period: 3 years
