MJJSGP10P10C-A

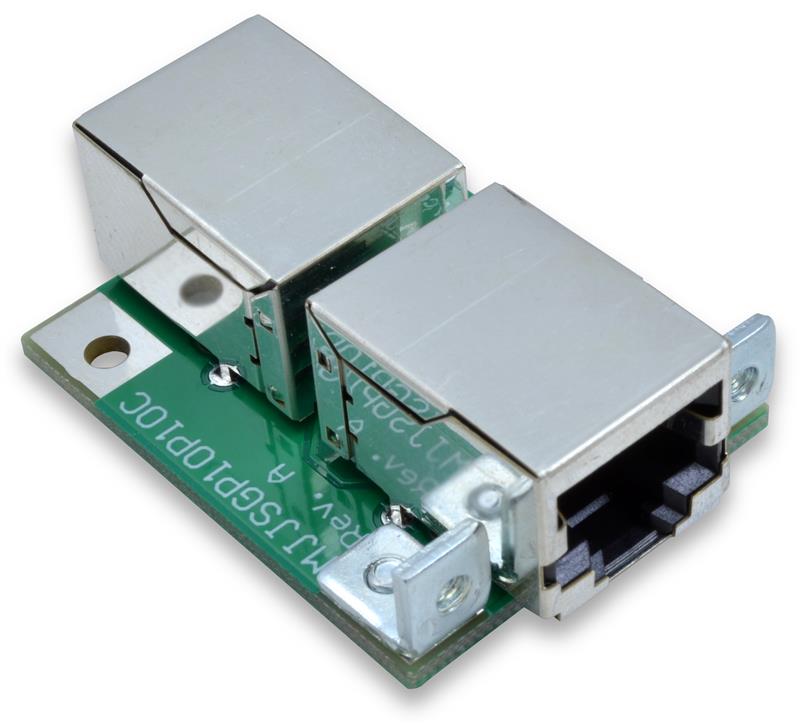

These couplers connect two modular RJ50/10P10C 10-pin cables. They are wired straight through rather than crossed over. In other words, they are wired 1:1 (Pin 1 to Pin1, Pin 2 to Pin 2, etc). Each end of the adapter consists of a female connector and thus can be used to couple two male cables. This product is designed to provide convenient through-panel connections for RJ50/10P10C cables.

Note: RJ45 (8P8C) connectors have eight pins, whereas the RJ50 (10P10C) connectors on this coupler are the same physical size, but with 10 pins. RJ50/10P10C is sometimes erroneously referred to as "RJ45 10 pin."

MJJSGP10P10C-A - RJ50 10P10C Inline Coupler, Female-Female, Straight, Shielded, Panel Mount
Part No. Description Price Stock
MJJSGP10P10C-A RJ50 10P10C Inline Coupler, Female-Female, Straight, Shielded, Panel Mount $12
∗ Standard lead time is 1 week

Panel Mounting

These couplers are designed to mount behind a panel face and extend through the panel, thus providing a convenient termination point for RJ50 connections which must extend outside of a panel enclosure. One of the RJ50 connectors on this product overhanges the printed circuit board by approximately 3 millimeters, thus extending the connector face through the panel and out to the face of the panel. A cutout must be made in the panel to accommodate the RJ50 connector, and two holes are needed for the mounting screws. Please consult the product data sheet for details.

Features


  • Inline coupler for modular connectors
  • Designed to be be panel mounted
  • Allows RJ50 / 10P10C connection through a panel
  • All pins wired 1:1
  • Warranty Period: 3 years
