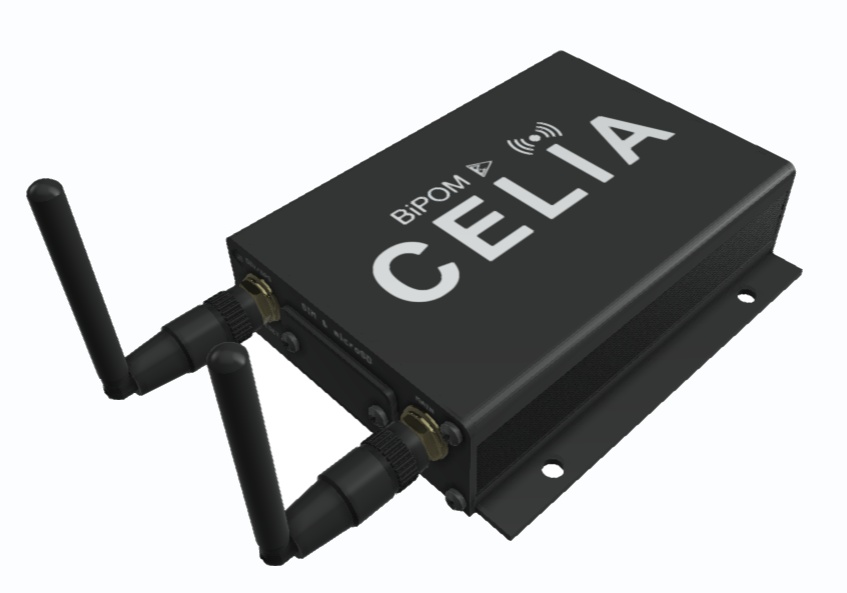

CELIA-E

CELIA series of products are cellular internet appliances with Ethernet and USB host interface. Using Nimbelink Skywire™ end-device certified modems , CELIA-E adds wireless connectivity to many devices such as embedded microcontroller boards, industrial equipment, instruments, PC's, PLC's, laptops, and tablets, without the cost and delay of obtaining FCC and carrier certifications. CELIA-E is available with a wide range of Nimbelink Skywire™ LTE cellular modems with CAT4, CAT1, and CAT-M/NB-IoT speeds. The small form factor fits easily in many enclosures, instrument panels, and devices.
CELIA-E - CELIA-E, Sierra Wireless Module, LTE CAT4 North America, With Enclosure
Part No. Description Price Stock
BRD-CELIA-E CELIA-E board, No Enclosure, No Module $178 ∗
CELIA-E-NM CELIA-E board, With Enclosure, No Module $174 ∗
CELIA-E-NM-A CELIA-E board, With Enclosure, No Module, With AC Adapter $184 ∗
CELIA-E-NM-D CELIA-E board, With Enclosure, No Module, With DC Cable $184 ∗
CELIA-E-NM-WIFI-BT-1 CELIA-E board, With Enclosure, No Module, With WiFi and BlueTooth $186 ∗
CELIA-E-NM-WIFI-BT-1-A CELIA-E board, With Enclosure, No Module, With WiFi and BlueTooth, With AC Adapter $196 ∗
CELIA-E-NM-WIFI-BT-1-D CELIA-E board, With Enclosure, No Module, With WiFi and BlueTooth, With DC Cable $196 ∗
CELIA-E-QBG95 CELIA-E, Quectel Module, LTE-M/NB-IoT, With Enclosure $259 ∗
CELIA-E-QBG95-A CELIA-E-QBG95 with AC Adapter $269 ∗
CELIA-E-QBG95-D CELIA-E-QBG95 with DC Cable $269 ∗
CELIA-E-QBG96 CELIA-E, Quectel Module, LTE-M/NB-IoT, With Enclosure $275 ∗
CELIA-E-QBG96-A CELIA-E-QBG96 with AC Adapter $285 ∗
CELIA-E-QBG96-D CELIA-E-QBG96 with DC Cable $285 ∗
CELIA-E-RC7611 CELIA-E, Sierra Wireless Module, LTE CAT4 North America, With Enclosure $323 ∗
CELIA-E-RC7611-A CELIA-E-RC7611 with AC Adapter $333 ∗
CELIA-E-RC7611-D CELIA-E-RC7611 with DC Cable $333 ∗
CELIA-E-TC1NAG CELIA-E, Telit Module, LTE CAT1 North America, With Enclosure $280 ∗
CELIA-E-TC1NAG-A CELIA-E, Telit Module, LTE CAT1 North America, With Enclosure, with AC Adapter $290 ∗
CELIA-E-TC1NAG-D CELIA-E, Telit Module, LTE CAT1 North America, With Enclosure, with DC Cable $290 ∗
CELIA-E-TC1WWG CELIA-E, Telit Module, LTE CAT1 Worldwide, With Enclosure $298 ∗
CELIA-E-TC1WWG-A CELIA-E-TC1WWG with AC Adapter $308 ∗
CELIA-E-TC1WWG-D CELIA-E-TC1WWG with DC Cable $308 ∗
CELIA-E-TC4NAG(B) CELIA-E, Telit Module, LTE CAT4, North America, GNSS $299 ∗
CELIA-E-TC4NAG(B)-A CELIA-E, Telit Module, LTE CAT4, North America, GNSS, AC Power Supply $309 ∗
CELIA-E-TC4NAG(B)-D CELIA-E, Telit Module, LTE CAT4, North America, GNSS, DC Cable $309 ∗
CELIA-E-TC4WWG CELIA-E, Telit Module, LTE CAT4 Worldwide, With Enclosure $323 ∗
CELIA-E-TC4WWG-A CELIA-E-TC4WWG with AC Adapter $333 ∗
CELIA-E-TC4WWG-D CELIA-E-TC4WWG with DC Cable $333 ∗
CELIA-E-TG1WWG CELIA-E, Telit Module, LTE-M/NB-IoT, With Enclosure $266 ∗
CELIA-E-TG1WWG-A CELIA-E-TG1WWG with AC Adapter $276 ∗
CELIA-E-TG1WWG-D CELIA-E-TG1WWG with DC Cable $276 ∗
SL-WiPOM-LD-CE Router/gateway WiPOM software license for CELIA $30 ∗
∗ Standard lead time is 1 week

CELIA-E is fully backed by a 3-year warranty, technical support and application assistance from BiPOM Electronics, Inc

Features

  • Octavo OSD32MP157C-512M-IAA CPU Module running at 650 MHz
  • Dual ARM® Cortex® -A7 core and one Cortex®-M4
  • 512 Megabytes of RAM, 8 Gigabytes of eMMC, microSD (optional)
  • Open system
  • OpenWRT Linux
  • Debian and other Linux variants supported
  • WiPOM software option for management, data acquisition and logging
  • Over the air and local upgrade
  • Software can be upgraded remotely
  • Cloud connectivity, support for many protocols
  • USB host interface allows interfacing with off-the-shelf USB dongles. Examples: USB Bluetooth, USB ZigBee, USB RS485
  • Compact, extruded aluminum enclosure with flanges for mounting
  • Supports all variants of Nimbelink Skywire™
  • Plug-and-play operation with Linux, Windows 10 and 11 host
  • Customer can use any compatible antenna without requiring re-certification
  • Dual SMA antenna connectors
  • Optional LTE antennas
  • SIM accessible by removing the front panel
  • Communication Method: USB or Ethernet (100Mbps)
  • Type A high-retention USB Host connector
  • User accessible microSD socket
  • 4-pin latching connector for power
  • 2 Analog or 2 Digital inputs on power connector, software configurable
  • Optional DC cable or AC adapter
  • Supply voltage: 8-30VDC
  • Power consumption: 1 Watt typical (no transmit)
  • Temperature range: -40°C to +85°C
  • Dimensions: 90 mm x 80 mm x 24 mm
  • Warranty Period: 3 years
